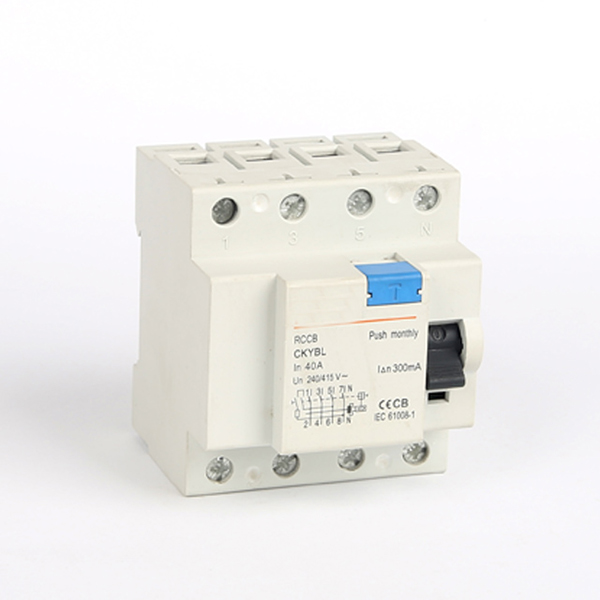

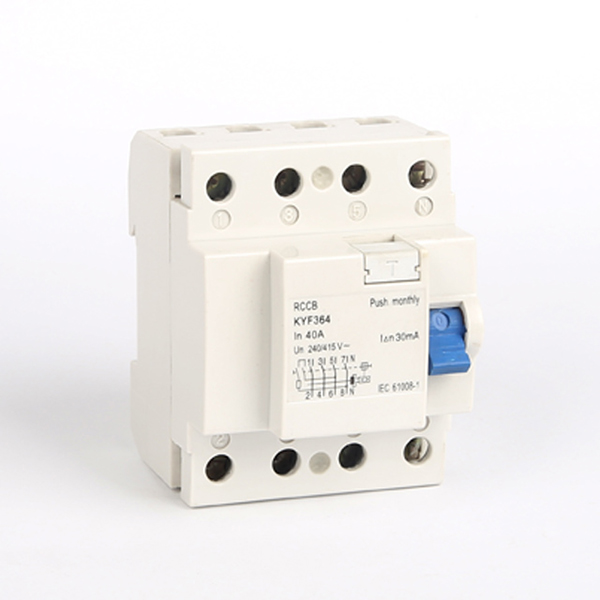

4 phase electrical leakage circuit breaker

Product description:
INQUIRY

Application

1)CY364 series Residual Current Operating Breakers is suitable for distribution systems of N line direct grounding AC 50Hz/60Hz, rated voltage 230V/400V, rated current 63A. And can be used for residual current protection.

2)The breaker could quickly switch off electrical power when people get an electric shock or leakage current exceeds stipulated value, protecting personal and electrical equipment safety.

3)It can protect circuit from overload and short circuit. And also can be used in circuit for unfrequently switching.

4) standard :CE CB ISO9001 IEC61009 GB16917.1

Technical Parameter

Mode	Electro-magnetic type,electronic type
Type(wave form of the earth leakage sensed)	AC,A
Connection terminal	Screw terminal
Poles	2,4P
Rated voltage Ue	AC240/415
lnsulation voltage Ui	500V
Rated frequency	50/60Hz
Electrical life	6000t
Mechanical life	20000t
Fault current inditor	Yes
Protection degree	lP20
Ambient temperature(with daily average≤35°c)	-25~+40°c
Storage temperature	-25~+70°c
Terminal connection type	Cable/U-type busbar/Pin-type busbar
Terminal size top/bottom for cable	25 mm² 18-3 AWG
Terminal size top/bottom for busbor	25 mm² 18-3 AWG
