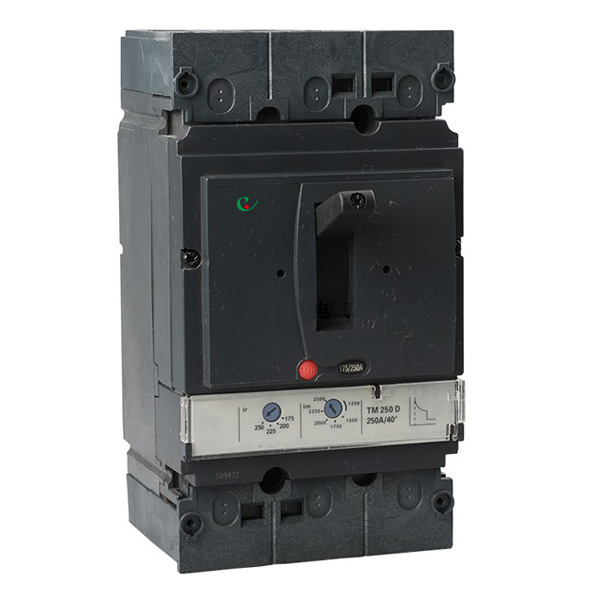

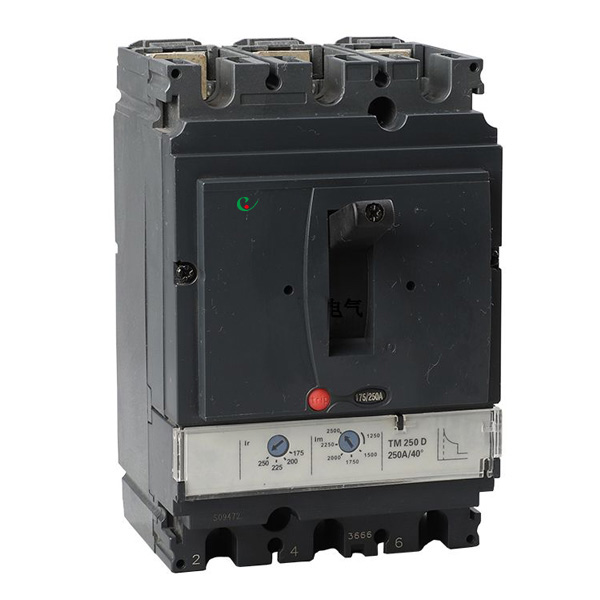

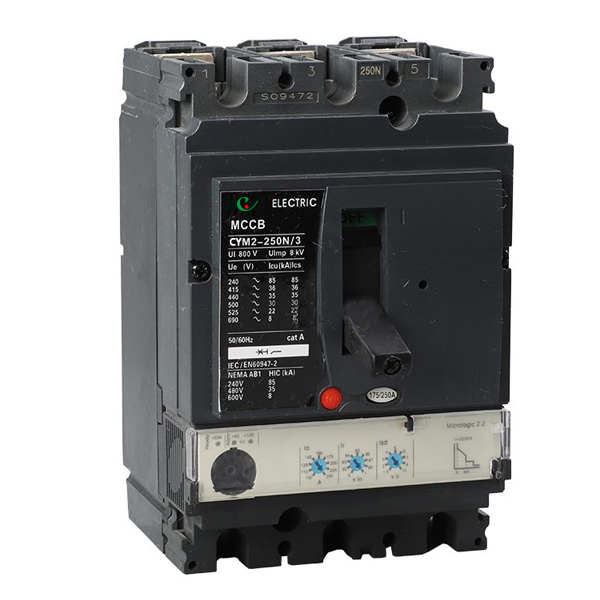

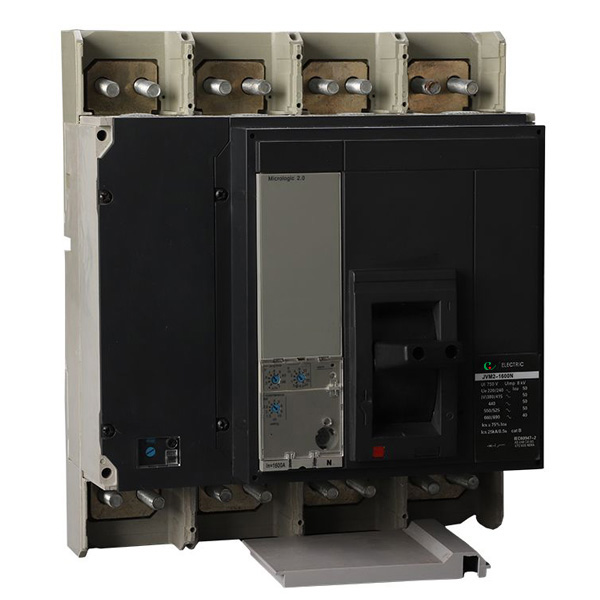

CYM2(NS/NSX) series moulded case circuit breaker

CYM2(NS/NSX) series moulded case circuit breaker

Place of Origin: Zhejiang, China
Type: Moulded Case
Pole: 3 Poles
Product name: Moulded Case Circuit Breaker
Product description: CYM2 series moulded case circuit breaker is one of breaker which adopts international advanced design, manufacture technology to develop. The rated insulating voltage is 750V, suitable for AC 50Hz/60H
INQUIRY

CYM2 series moulded case circuit breaker is one of breaker which adopts international advanced design, manufacture technology to develop. The rated insulating voltage is 750V, suitable for AC 50Hz/60Hz, rated working voltage 690V or below, rated working current is 12.5A to 630A of circuit and used in distributing electric energy, and non-frequent breaking in the normal conditions, protecting the current & equipment from overload & under voltage, circuit breaker with rated frame current 400A or below,can be used in mousecage motor's non-frequent start,breaking during working,protecting motor from voerload, short circuit & undervoltage,the product conforms to IEC 60947-2 standard.

Type	Rated current	Note
CYM2-100	12.5,16,20,25,32,40,50,63,80,100	T adjustable(0.8~1ln)
CYM2-160	16,20,25,32,40,50,63,8/0,100,125,160	M adjustable(5~10ln)
CYM2-250	160,180,200,225,250
CYM2-400	315,350,400
CYM2-630	400,500,630
CYM2-1250	800,1000,1250	T adjustable (0.8~1ln)
CYM2-1600	1000,1250,1600	M fixed
