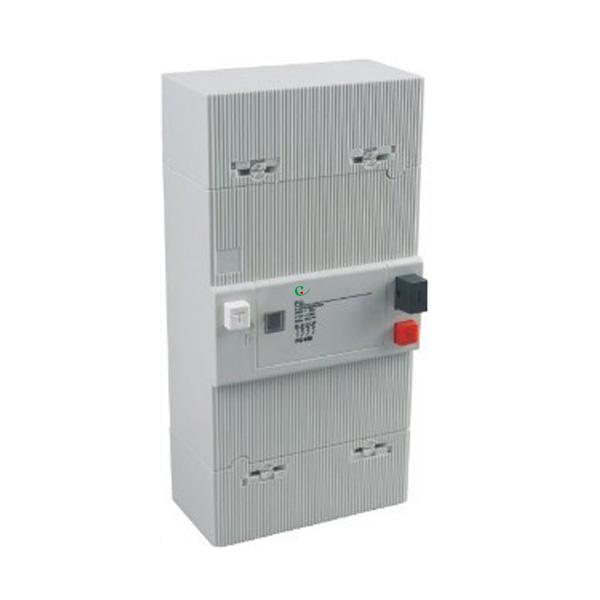

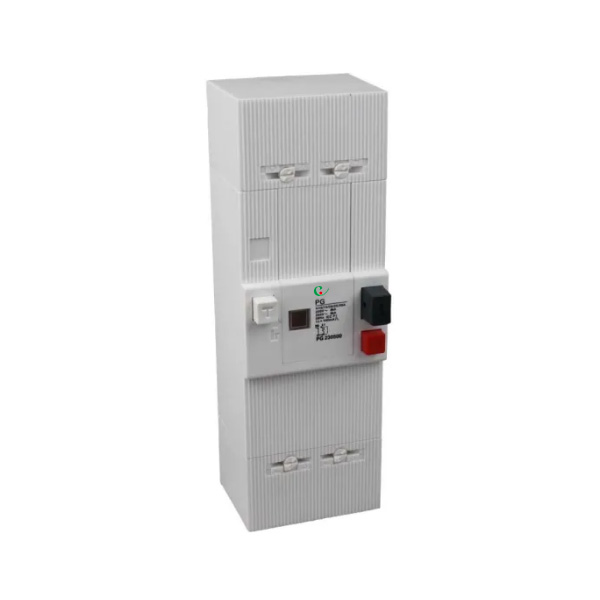

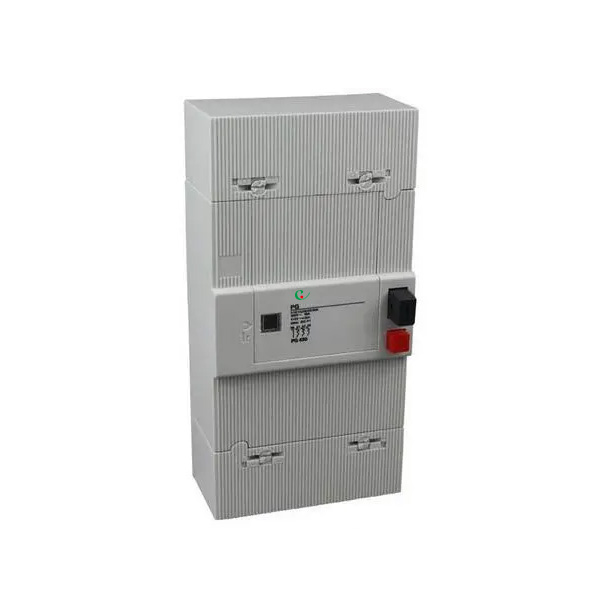

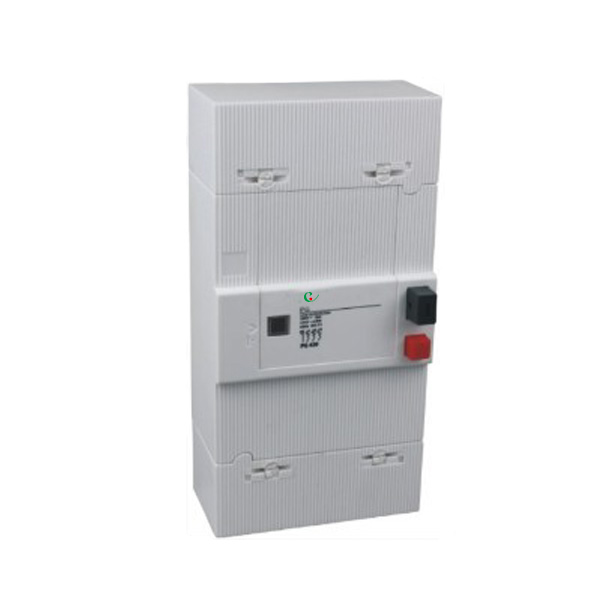

PG molded case circuit breaker

Place of Origin: Zhejiang, China
Type: Earth Leakage
Leakage operating current (mA):: 300mA,500mA
Rated voltage: 230V/400V
Product description: PG series adjustable residual current breaker is suitable for AC 50/60Hz,250/440V circuit,prevents from overloading,short-circuit etc.On the occasion of shock hazard or earth leakage,it will trip imme
INQUIRY

PG series RCCB is suitable for the line of AC 50/60Hz, voltage 230V(2pole)/400V(4pole), rated current up to 60A. When there is human electricity shock or if the leakage current of the line exceeds the prescribed value, it will cut off the power rapidly to protect human safety and prevent the accident due to the current leakage. It can be used as infrequent changeover of the line in normal situation. It is applicable to industrial site, commercial site, tall building and civil house.

It complies with standard of IEC61008

Type	PG
Poles	2P/4P
Rated Voltage (V)	250V/440V
Rated Current (A)	5 ~ 15A(5、10、15)A 10 ~ 30A(10、15、20、25、30)A 15 ~ 45A(15、30、45)A 30 ~ 60A(30、45、60)A
Leakage Motion Current (mA)	300mA, 500mA
Leakage Dead Current (mA)	150mA, 250mA
Standard	NFC61450,IEC61008
