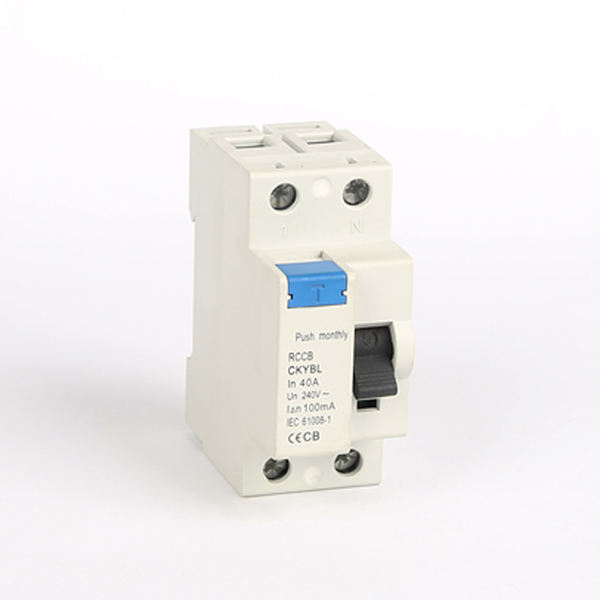

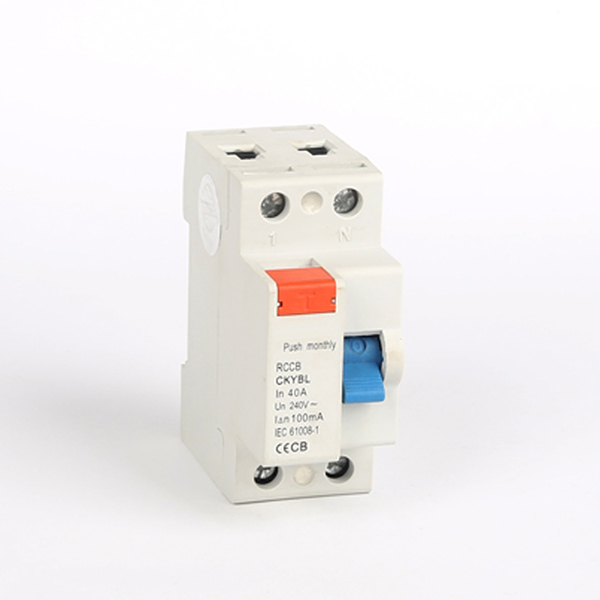

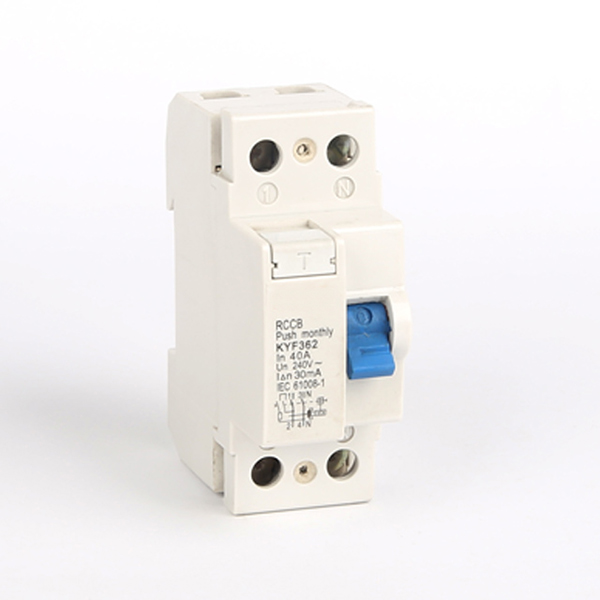

2 phase electrical leakage circuit breaker

2 phase electrical leakage circuit breaker

Product description:
INQUIRY

Residual Current Circuit Breaker:

APPLICATIONS:

The RCCB is in conformity with the standard of IEC61008.The RCCB can cut off the fault circuit immeditaely on the occasion of shock hazard of earth leakage of truck.Thus it is suitable to avoid the shock hazard and fire caused by earth leakage.

The RCCB is mainly suitable for use in varieties of plants and enterprises,building construction 1 phase 230V and 3 phase 400V 50/60HZ.RCCB is not suitable for use on DC pulse system.

SPECIFICATION:

Number of Poles						2P,4P
Rated Current(A)						16,20,25,32,40,50,63,80,100
Rated Residual Operating Current(I∆n)(mA)						10,30,100,300,500
Rated Residual Non-operation Current(I∆no)(mA)						≤0.5I∆n
Rated Voltage(V)						AC 230/240
						AC 400/415
Residual Operating Current Scope						0.5I∆n~I∆n
Residual Current Off-time						≤0.3S
Short Circuit Capacity(Icu)						3000A
Endurance						4000
Protection Degree						IP20
