1.General

1.1 Application

Personnel and fire protection

Cable and line protection against overload and short circuits

1.2 General rules for choosing RCBO:

a.Rated residual operating current

I△n≤30 mA:additional protection in the case of direct contact

I△n≤300 mA:preventative fire protection in the case of ground fault currents

b.Tripping class

AC class - Tripping is ensured for sinusoidal,alternating currents,whether they be quickly applied or slowly increase.

A class - Tripping is ensured for sinusoidal,alternating residual currents as well as for pulsed DC residual currents,whether they be quickly applied or slowly increase.

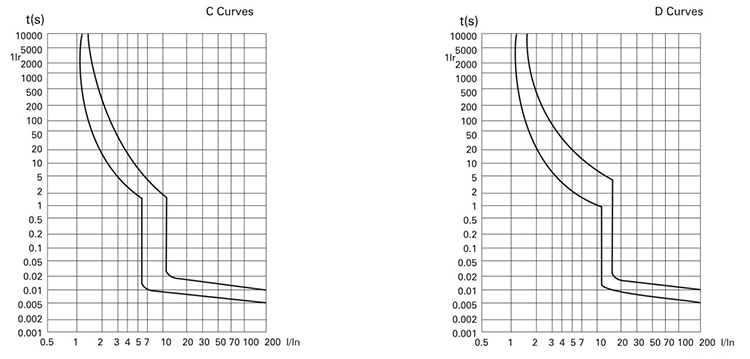

c.Tripping curve

B curve (3-5 In) protection and control of the circuits against overloads and short-circuits;protection for peolpe and big length cables in TN and IT systems

C curve (5-10 In) protection and control of the circuits against overloads and short-circuits;protection for resistive and inductive loads with low inrush current.

2. Technical Data

2.1 Curves



Standard IEC/EN 60898-1
Electrical features Type(wave form of the earth leakage sensed) AC,A
Thermo-magnetic release characteristic B,C
Rated current In A MCB+add-on RCD block 1,2,3,4,6,10,13,16,20,25,32,40,50,63
Combined 1,2,3,4,6,10,13,16,20,25,32,40
Poles MCB+add-on RCD block 1P+N,2P,3P,3P+N,4P
Combined 1P+N,2P
Rated voltage Ue V 230/400
Rated sensitivity I△n A MCB+add-on RCD block 0.03,0.1,0.3
Combined 0.03
Rated residual making and breaking capacity I△m A 500(In≤40A)
630(In>40A)
Rated short-circuit capacity Icn A 6000/10000
Break time under I△n Rated frequency S ≤0.1
Hz 50/60
Rated impulse withstand voltage (1.2/50)Uimp V 6,000
Dielectric test voltage at ind.Freq.for 1 min kV 2
Insulation voltage Ui 500
Pollution degree 2
Mechanical features Electrical life 2000
Mechanical life 2000
Contact position indicator Yes
Protection degree IP20
Ambient temperature (with dally average≤35℃) -5...+40(Special application please refer to P65 for temperature compensation correction)
Storge temperature -25...+70
Installation Terminal connection type Cable/U-type busbar/Pin-type busbar
Terminal size top/bottom for cable mm2 25
AWG 18-3
Terminal size top/bottom for busbar mm2 25
AWG 18-3
Tightening torque N*m 2
In-Ibs. 18
Mounting On DIN rail EN 60715 (35mm) by means of fast clip device
Connection From top and bottom (for combined type)
From top (MCB+add-on RCB block)
Temperature -10℃ 0℃ 10℃ 20℃ 30℃ 40℃ 50℃ 60℃
Temperature compensation coefficient of rated current 1.2 1.15 1.1 1.05 1 0.95 0.9 0.85

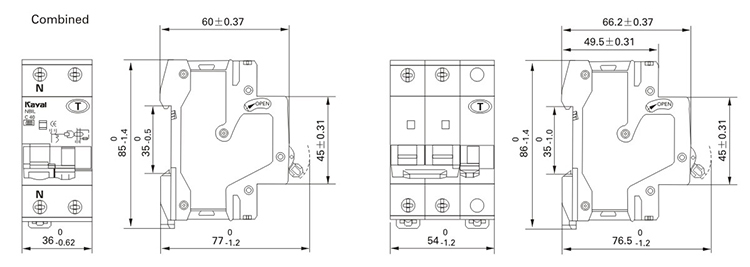

3. Overall and Mounting Dimensions(mm)

3.1 MCB+add-on RCD block

Number of poles Overall dimensions A(mm)
1~40A 50~63A

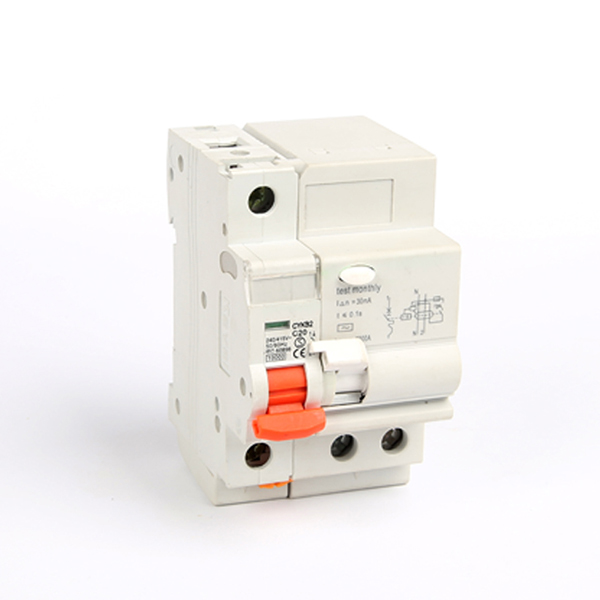

1P+N 45 54

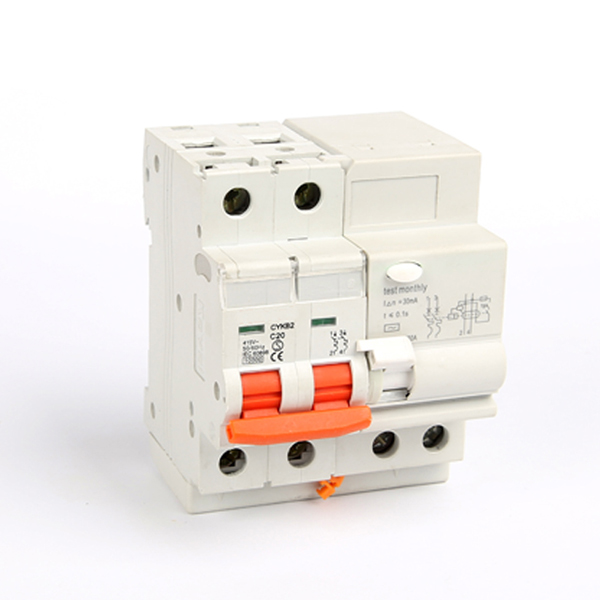

2P 63 72

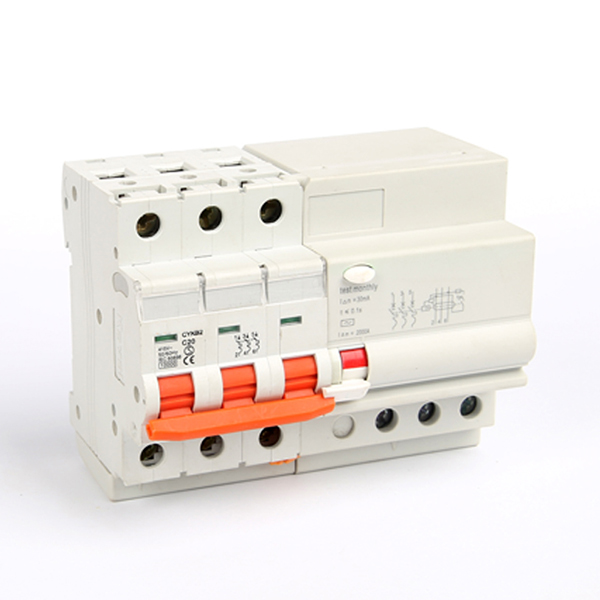

3P 108 114
3P+N 108 114

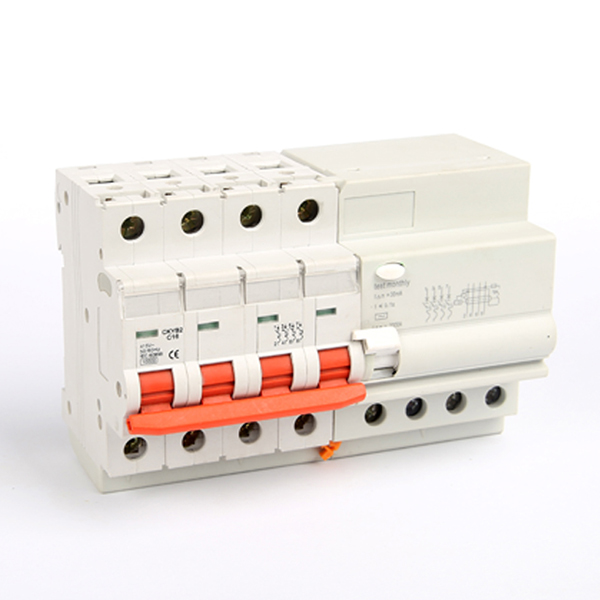

4P 126 135
B(mm)
1P+N 27 35
2P 27 35
3P 54 63
3P+N 54 63
4P 54 63
