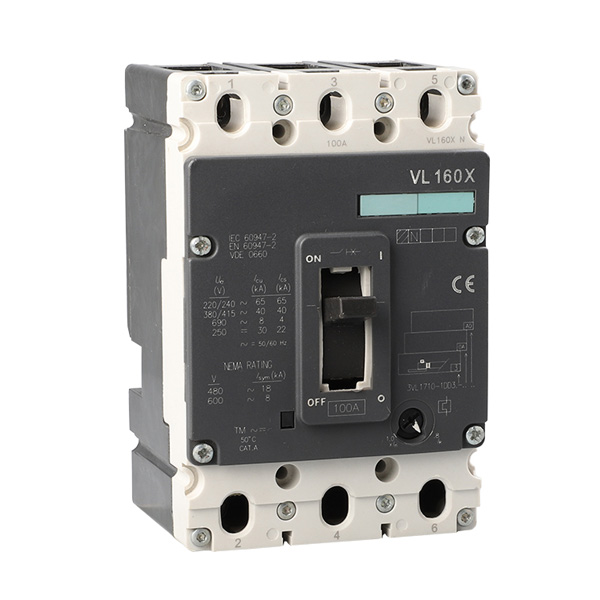

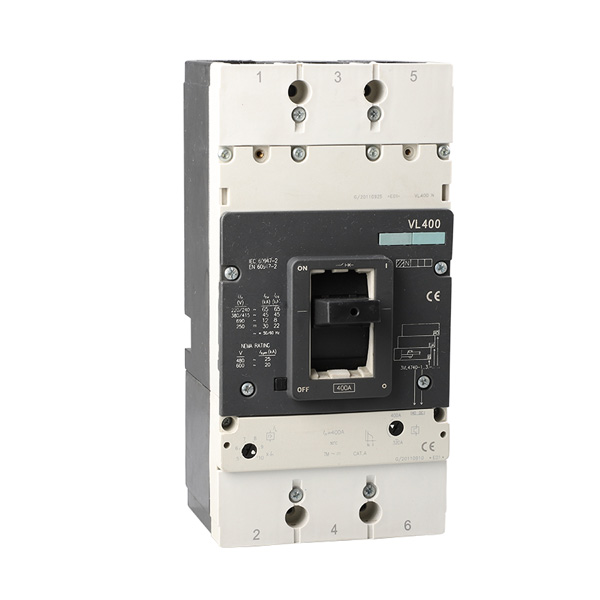

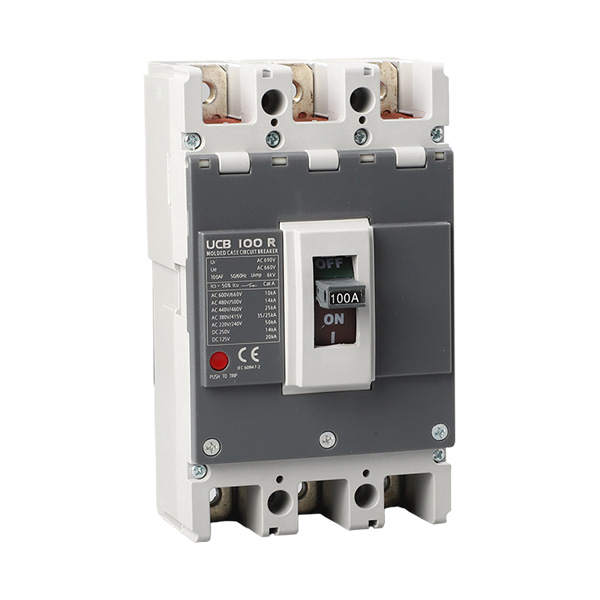

CYM6(NF) Moulded Case Circuit Breaker

  • Place of Origin: Zhejiang, China
  • Type: Moulded Case
  • Rated voltage: 690V and below
  • Rated current: 16A~1600A
  • Product description: This breaker has features of small volume, high breaking capacity, short arcing time, an ideal product to use. This product complies with standard of IEC 60947-2.
  • INQUIRY

Application

CYM6-CW moulded case circuit breaker is rated insulation voltage up to 800V. It applies to distribution network circuit of AC 50Hz or 60Hz, with rated working voltage up to 690V and rated working current up to 800A. It is used to protect circuits and power-supply equipment from damage of overload, short circuit and under-voltage protection for the motor, can be installed both vertically and horizontally.

This breaker has features of small volume, high breaking capacity, short arcing time, an ideal product to use. This product complies with standard of IEC 60947-2.

Specification

Type

CYM6-160X

CYM6-160

CYM6-250

CYM6-400

CYM6-630

Poles number

3

3

3

3

3

Rated current In(A)

20~160A

50~160A

100~250A

200~400A

315~400A

Rated operating voltage Ue(V) AC 50/60Hz

690

690

690

690

690

Rated insulation voltage Ui(V)

800

800

800

800

800

Rated impulse withstand voltage Uimp(KV)

8

8

8

8

8

Utilisation category

A

A

A

A

A

Rated ultimate short-circuit breaking capacityIcu(KA)

AC 220/240V

65

65

65

65

65

AC 380/415V

40

40

40

40

40

AC 690V

8

12

12

12

12

Rated short-circuit servicebreaking capacityIcs(KA)

AC 220/240V

65

65

65

65

65

AC 380/415V

40

40

40

40

40

AC 690V

4

6

6

6

6
