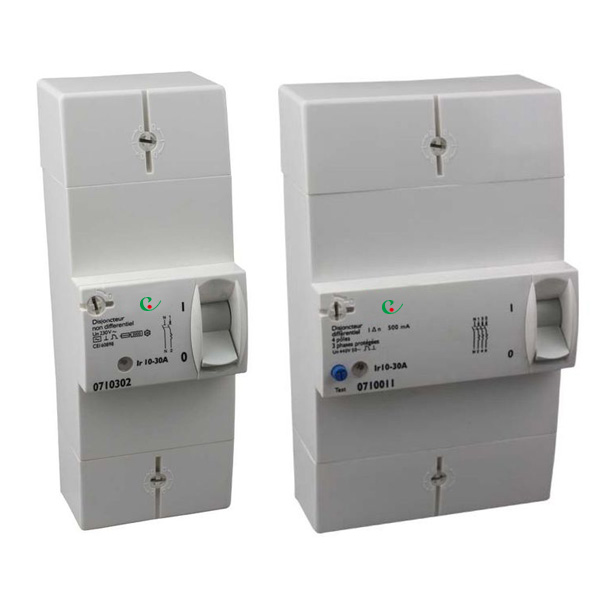

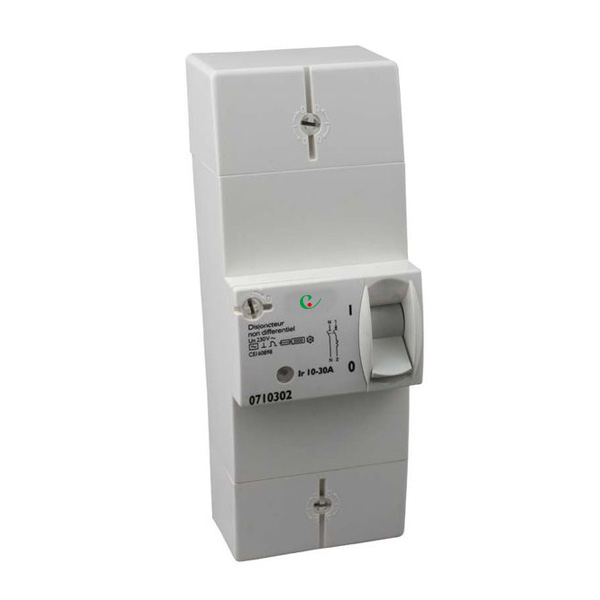

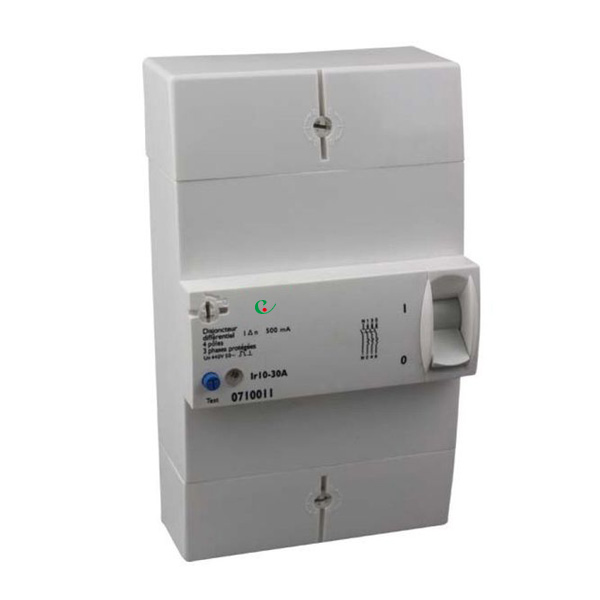

TG molded case circuit breaker

  • Place of Origin: Zhejiang, China
  • Type: Earth Leakage
  • Leakage operating current (mA):: 300mA,500mA
  • Model No: TG Residual Current Circuit Breaker
  • Product description: TG series adjustable residual current breaker is suitable for AC 50/60Hz,250/440V circuit,prevents from overloading,short-circuit etc.On the occasion of shock hazard or earth leakage,it will trip imm
  • INQUIRY
TG series RCCB is suitable for the line of AC 50/60Hz, voltage 230V(2pole)/400V(4pole), rated current up to 60A. When there is human electricity shock or if the leakage current of the line exceeds the prescribed value, it will cut off the power rapidly to protect human safety and prevent the accident due to the current leakage. It can be used as infrequent changeover of the line in normal situation. It is applicable to industrial site, commercial site, tall building and civil house.

It complies with standard of IEC61008

Type

TG

Poles

2P/4P

Rated Voltage (V)

250V/440V

Rated Current (A)

5 ~ 15A(5、10、15)A

10 ~ 30A(10、15、20、25、30)A

15 ~ 45A(15、30、45)A

30 ~ 60A(30、45、60)A

Leakage Motion Current (mA)

300mA, 500mA

Leakage Dead Current (mA)

150mA, 250mA

Standard

NFC61450,IEC61008

Dimensions
