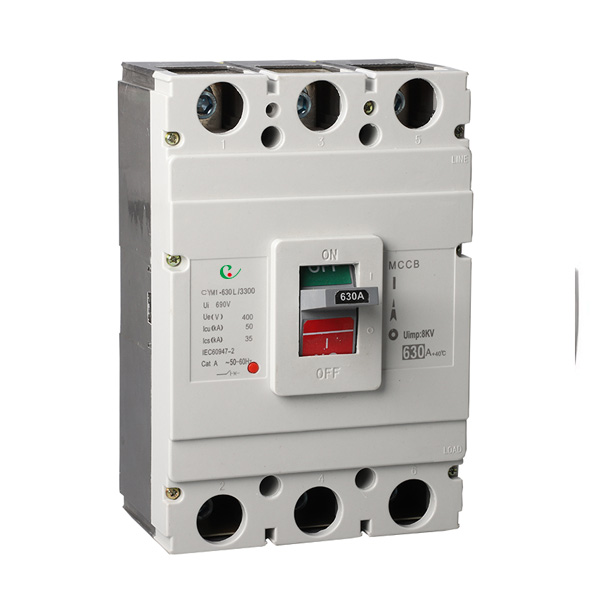

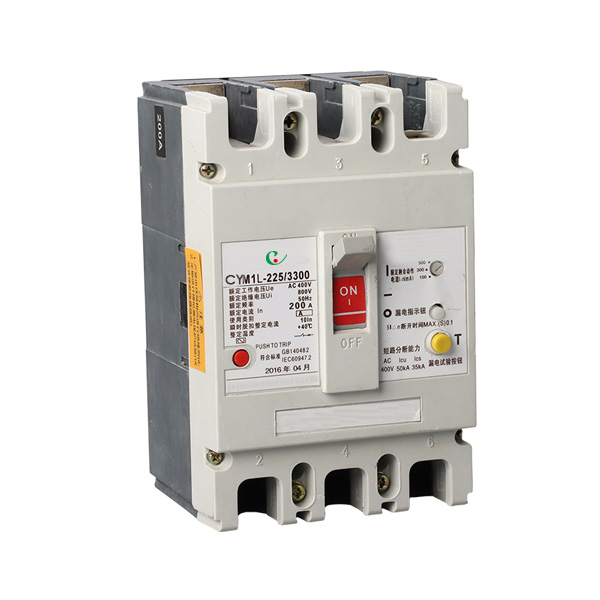

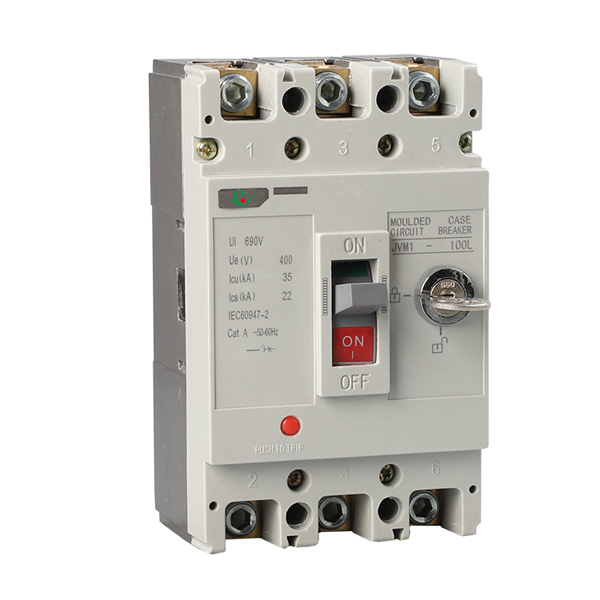

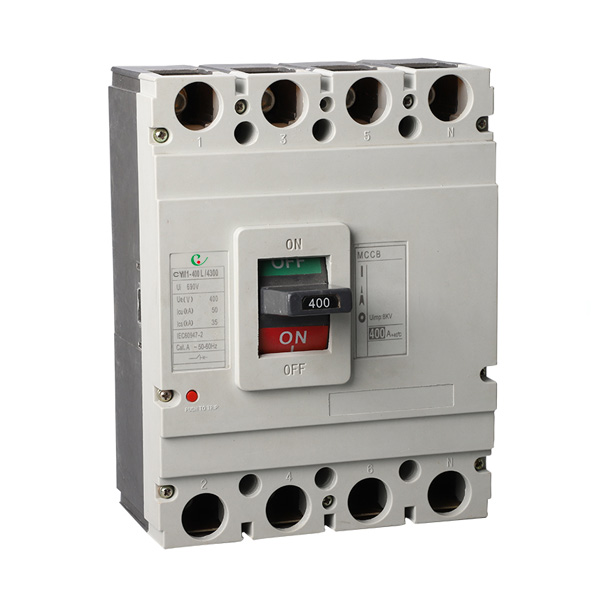

CYM1(CM1) Series Moulded Case Circuit Breaker

  • Place of Origin: Zhejiang, China
  • Type: Moulded Case
  • Breaking capacity: 35KA-50KA
  • Rated voltage: 400V/690V
  • Product description: CYM1(CM1) Series Moulded Case Circuit Breaker
  • INQUIRY

CYM1 series moulded case circuit breaker is one of products developed andmanufactured by adopting international advanced technology.It is supplied with rated insulating voltage 800V and used for circuit of A.C.50Hz, rated operating voltage AC 400V (or below),rated operating current up to 800A for infrequent changing over and starting of the motors. The products con-forms to IEC 60947-2 stamdard.

Type

Rated
current (A)

Polenum-ber

Ratedinsui-atingvolt-  age(V)

Rated
operat-ingvolt-age(V)

Arcing-
over
distance
(mm)

Ultimate
short
circuit
breaking
capacity
(KA)

Servies
short
circuit
breaking
capacity
(KA)

Operation
perform-
ance

Utiliza-tioncat-egory

Load

Unload

CYM1-63L

(6),10
16,20
25 ,32
40,50
63

3, 4

500V

400V

0

25

18

1500

8500

A

CYM1-63M

0

50

35

CYM1-100L

(10),16
20,25
32,40
50,63
80,100

800V

0(≤50)

35

22

CYM1-100M

0(≤50)

50

35

CYM1-100H

0(≤50)

85

50

1000

7000

CYM1-225L

100,125
160,180
200,225

≤50

35

22

CYM1-225M

≤50

50

35

CYM1-225H

≤50

85

50

1000

4000

CYM1-400L

225,250
315,350
400

≤50

50

35

CYM1-400M

≤100

65

42

CYM1-630L

400,500
630

≤100

50

35

CYM1-630M

≤100

65

42

CYM1-630H

≤100

100

65

CYM1-800M

630,700
800

3

≤100

75

50

CYM1-800H

≤100

100

65

CYM1-1250M

1000,1250

≤100

100

65

CYM1-1250H

≤100

125

5

L:Typical type.       M:Second high breaking type.      H:High breaking type.   *Specifications in  brackets are not recommended.
