  • Crimp Type Pre-Insulated Copper Terminal Cable Lugs
  • Crimp Type Pre-Insulated Copper Terminal Cable Lugs
  • Crimp Type Pre-Insulated Copper Terminal Cable Lugs
  • Crimp Type Pre-Insulated Copper Terminal Cable Lugs
Crimp Type Pre-Insulated Copper Terminal Cable LugsCrimp Type Pre-Insulated Copper Terminal Cable LugsCrimp Type Pre-Insulated Copper Terminal Cable LugsCrimp Type Pre-Insulated Copper Terminal Cable Lugs

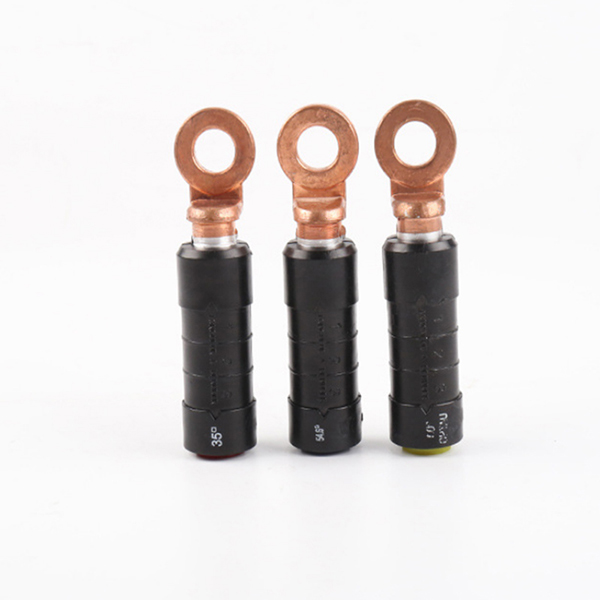

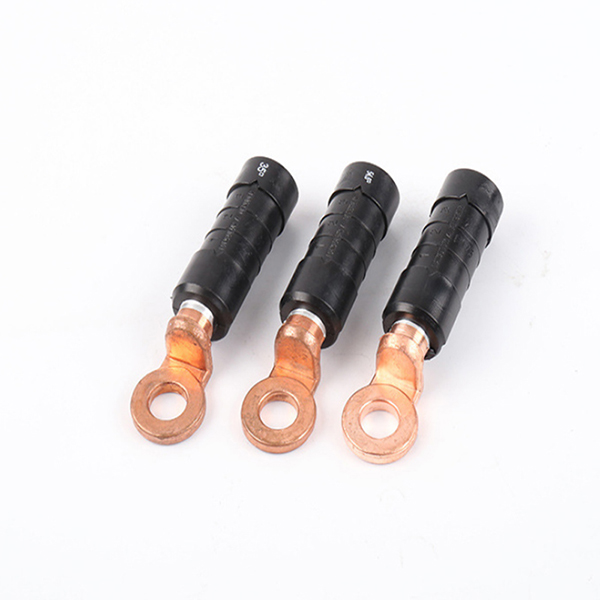

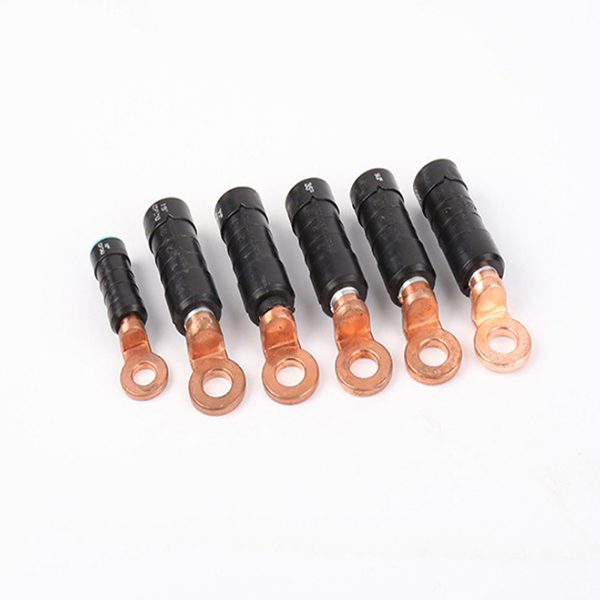

Crimp Type Pre-Insulated Copper Terminal Cable Lugs

  • Product description: Crimp Type Pre-Insulated Copper Terminal Cable Lugs
  • INQUIRY

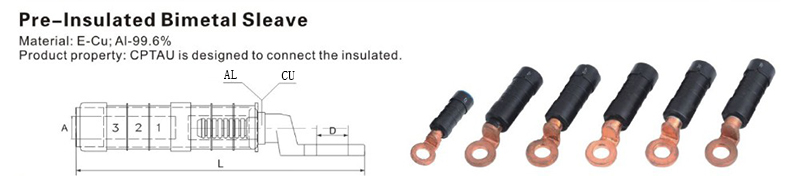

Type

Aluminum full length L1

(mm)

Outer full Length L

(mm)

Copper head outer diameter D2

(mm)

Dimensions(mm) Color Tool
d1 D1 d2 L2 S
CPTAU16 42.5 76 Φ20 5.2 10.5 17.3 20.5 4.6 blue E140
CPTAU25 42.5 76 Φ20 6.4 13 17.3 20.5 4.6 orange E140
CPTAU35 54 97 Φ25 7.9 13 22 25 6 red E173
CPTAU50 54 97 Φ25 8.9 13 22 25 6 yellow E173
CPTAU54 54 97 Φ25 9.9 13 22 25 6 black E173
CPTAU70 54 97 Φ25 10.4 13 22 25 6 white E173
CPTAU95 54 97 Φ25 12.1 13 22 25 6 gray E173
CPTAU120 64 121 Φ30.5 14.1 13 26.5 32 7.8 pink E215
CPTAU150 64 121 Φ30.5 15.4 13 26.5 32 7.8 purple E215
