Top of the line with electro-tin plated copper cores to prevent corrosion & engineered to hold the strongest crimps.

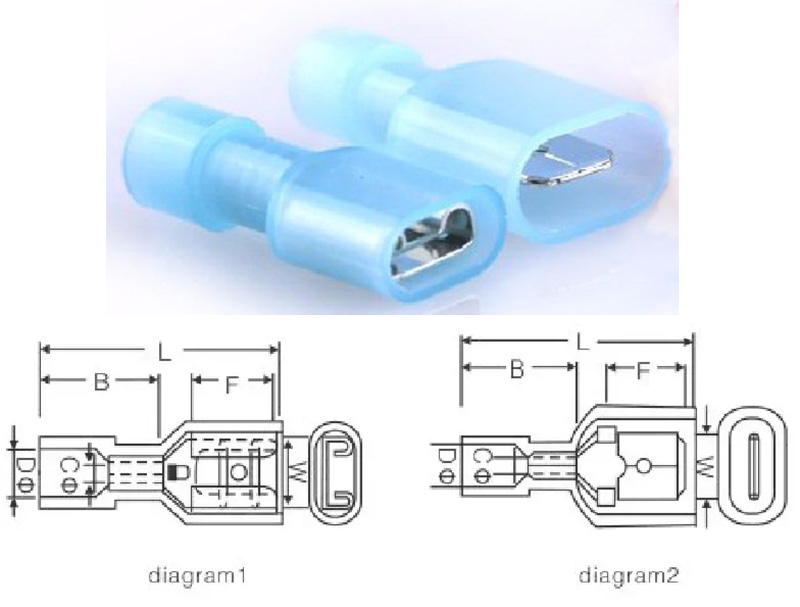

| M NO | Nema Tab | Dimension(mm) | Diagram | WIRE RANGE | Color | |||||
| (mm) | w | F | L | B | Dφ | Cφ | AWG/mm² | |||
| FDFN 1.25-250 | 0.8*6.35 | 6.6 | 7.3 | 22 | 11 | 4 | 1.7 | 1 |
22-16AWG 0.5-1.5/mm² 10A |

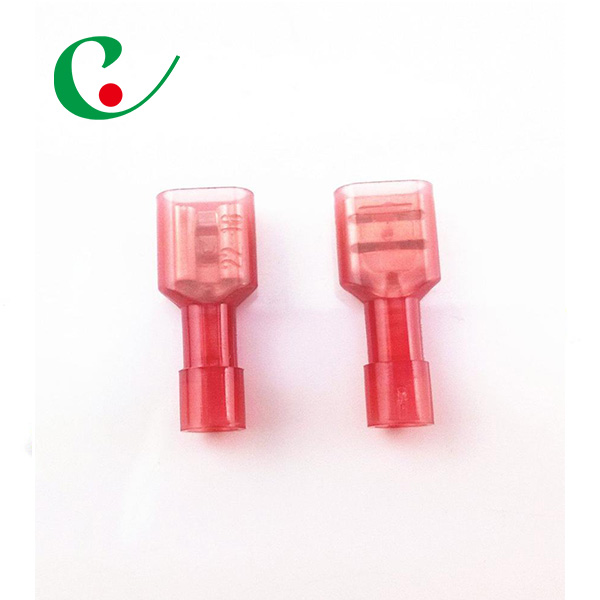

Red |
| MDFN 1.25-251 | 6.35 | 7.7 | 23 | 2 | ||||||
| FDFN 2-250 | 0.8*6.35 | 6.6 | 7.3 | 22 | 11 | 4.5 | 2.3 | 1 |
16-14AWG 1.5-2.5/mm² 15A |
Blue |
| MDFN 2-251 | 6.35 | 7.7 | 24 | 2 | ||||||
| FDFN 5.5-250 | 0.8*6.35 | 6.6 | 7.3 | 24 | 13 | 6.3 | 3.4 | 1 |
12-10AWG 4-6/mm² 24A |

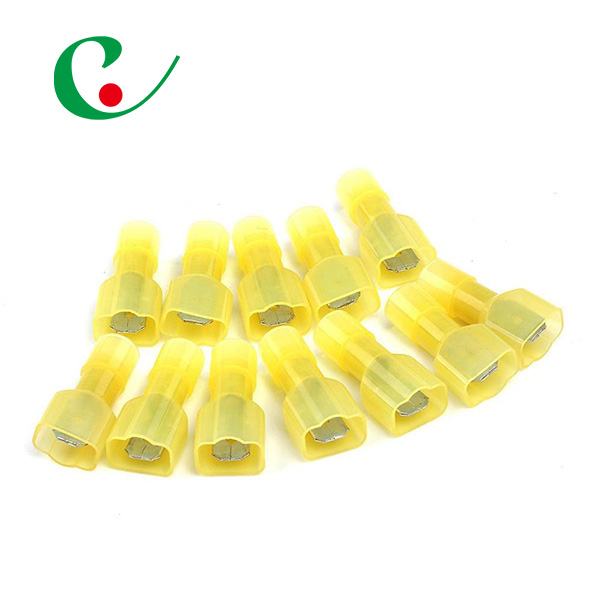

Yellow |
| MDFN 5.5-251 | 6.35 | 7.7 | 25 | 2 | ||||||
