PTV brass cable insulated pin terminal is applied for kinds of industrial and mining enterprises such as steel smelting,prtrochemical industry,electric power,electron ,railway,construction,airport, mine,stope,water supply and drain processing factory ,port,store,hotel and so on . And it is also for mating and maintenance fittings of device power and connectors imported from abroad.

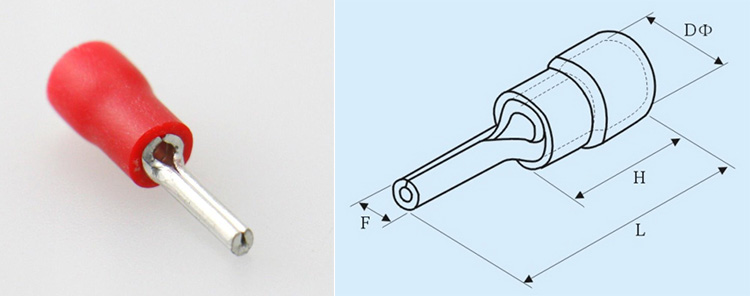

| lead section: 0.5~1.5mm2(A.W.G: 22~16) Imax=19A | |||||
| Item NO | dimension(mm) | color | |||
| F | L | H | Dφ | ||

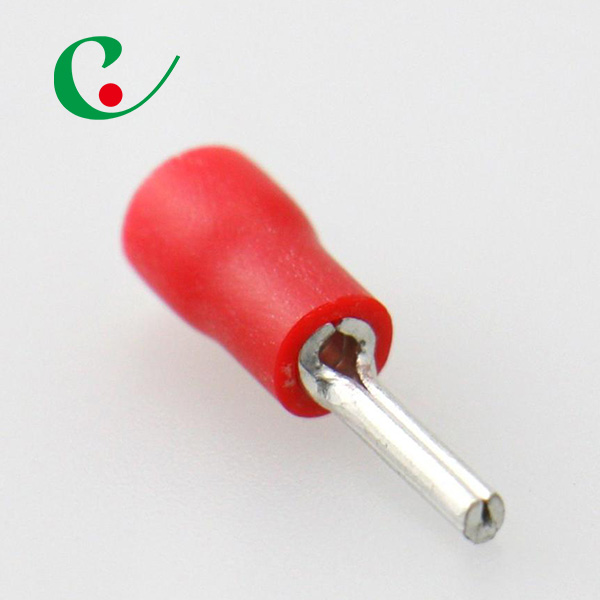

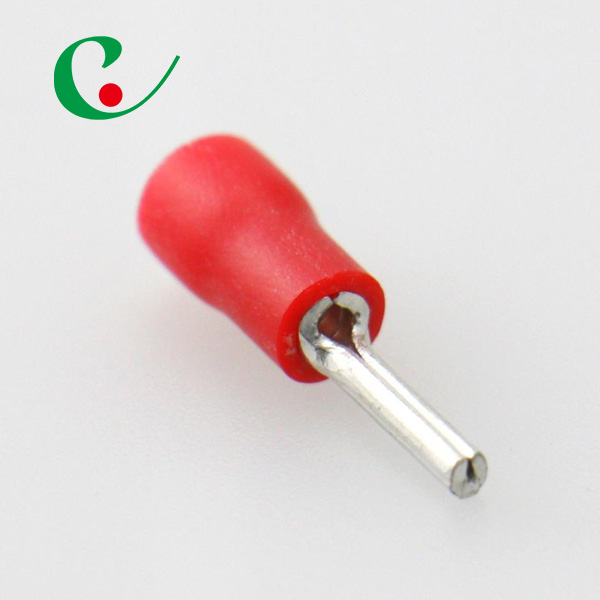

| PTV 1.25-9 | 1.9 | 19 | 10 | 4.3 | red |
| PTV 1.25-10 | 1.9 | 20 | |||
| PTV 1.25-12 | 1.9 | 22 | |||
| PTV 1.25-13 | 1.9 | 23 | |||
| PTV 1.25-18 | 1.9 | 28 | |||
| lead section: 1.5~2.5mm2(A.W.G:16~14) Imax=27A | |||||
| Item NO | dimension(mm) | color | |||
| F | L | H | Dφ | ||

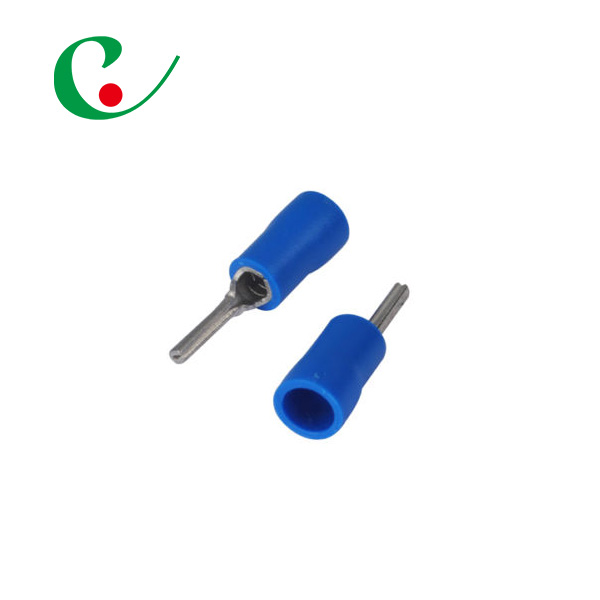

| PTV 2-9 | 1.9 | 19 | 10 | 4.9 | blue |
| PTV 2-10 | 1.9 | 20 | |||
| PTV 2-12 | 1.9 | 22 | |||
| PTV 2-13 | 1.9 | 23 | |||
| PTV 2-18 | 1.9 | 28 | |||
| cable size: 2.5~4mm2(A.W.G:14~12) Imax:=37A | |||||
| Item NO | dimension(mm) | color | |||
| F | L | H | Dφ | ||
| PTV 3.5-10 | 2.8 | 20 | 13 | 6.2 | black |
| PTV 3.5-13 | 2.8 | 25.5 | |||
| cable size:4~6mm2(A.W.G:12~10) Imax:=48A | |||||
| Item NO | dimension(mm) | color | |||
| F | L | H | Dφ | ||
| PTV 5.5-13 | 2.8 | 25.5 | 13 | 6.7 | yellow |
| PTV 5.5-18 | 2.8 | 30.5 | 13 | 6.7 | |
