Brass Insulated bullet male terminals

Place of Origin: Zhejiang, China
Model Number: MPD
Product name: Insulated bullet male disconnects
Material: Copper&PVC
Product description: MPD series Brass Insulated bullet male terminals disconnects with PVC insulation ,CE certification
INQUIRY

Product Description

Conductor section:4-6mm2 (A.W.G 22-16) 1max=10A

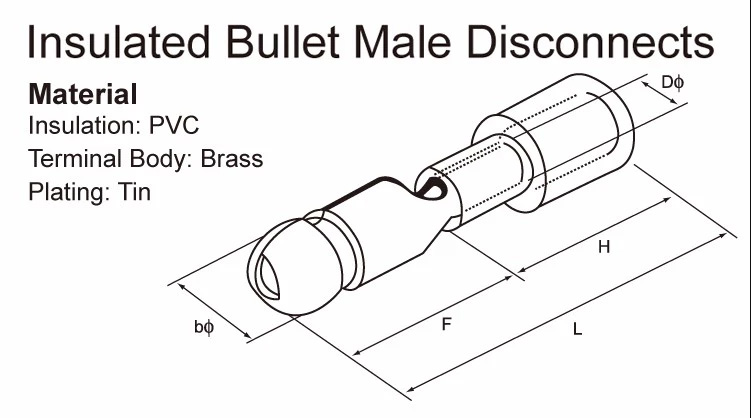

ITEM NO	Dimension(mm)					Color
	bΦ	F	DΦ	H	L
MPD5.5-195	5	12	3.4	13	25	Yellow

Conductor section:0.5-1.5mm2 (A.W.G 22-16) 1max=10A
ITEM NO.	Dimension(mm)					Color
	bΦ	F	DΦ	H	L

Conductor section:1.5-2.5mm2 (A.W.G 16-14) 1max=15A
ITEM NO.	Dimension(mm)					Color
	bΦ	F	DΦ	H	L
MPD2-156	4	11	2.3	10	21	Blue
MPD2-195	5	11	2.3	10	21
