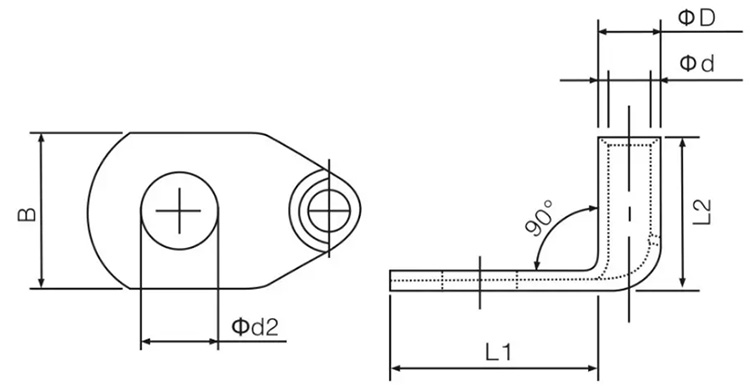

ITEM NO.

Dimension(mm)

Φd2

B

L

ΦD

Φd

E

90-6/5

5.3

22.5

14

6.5

3.5

10

90-6/6

6.4

24

14

6.5

3.5

12

90-6/8

8.5

27.5

14

6.5

3.5

15

90-6/10

10.5

29.5

14

6.5

3.5

16

90-10/5

5.3

23

16

7

4.5

12

90-10/6

6.4

24

16

7

4.5

12

90-10/8

8.5

28

16

7

4.5

15

90-10/10

10.5

29.5

16

7

4.5

18

90-16/5

5.3

22.5

20

8.5

5.5

12

90-16/6

6.4

24

20

8.5

5.5

14

90-16/8

8.5

28

20

8.5

5.5

15

90-16/10

10.5

31

20

8.5

5.5

18

90-16/12

13

32

20

8.5

5.5

19

90-25/6

6.4

27.5

21

10

6.9

15

90-25/8

8.4

32.5

21

10

6.9

16

90-25/10

10.5

32.5

21

10

6.9

18

90-25/12

13

34

21

10

6.9

19

90-35/6

6.4

28.5

24

12

8.5

17

90-35/8

8.5

34

24

12

8.5

17

90-35/10

10.5

34

24

12

8.5

20

90-35/12

13

40.5

24

12

8.5

22

90-50/6

6.4

37

28.5

14

10

20

90-50/8

8.4

40.5

28.5

14

10

20

90-50/10

10.5

40.5

28.5

14

10

20

90-50/12

13

42.5

28.5

14

10

23

90-50/16

17

50.5

28.5

14

10

28

90-70/8

8.5

43

31

16.5

12

24

90-7010

10.5

43

31

16.5

12

24

90-70/12

13

44.5

31

16.5

12

24

90-70/16

17

53

31

16.5

12

28

90-70/20

21

59

31

16.5

12

30

90-95/8

8.5

44.5

35

18

13.5

26

90-95/10

10.5

44.5

35

18

13.5

26

90-95/12

13

46.5

35

18

13.5

26

90-95/16

17

52

35

18

13.5

28

90-95/20

21

59

35

18

13.5

30.5

90-120/10

10.5

49

35.5

19.5

15

29

90-120/12

13

49

35.5

19.5

15

29

90-120/16

17

55

35.5

19.5

15

29

90-120/20

21

61

35.5

19.5

15

30.5
