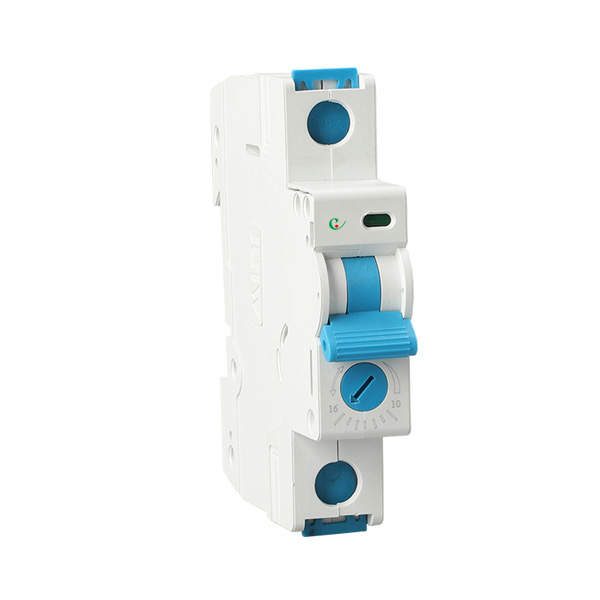

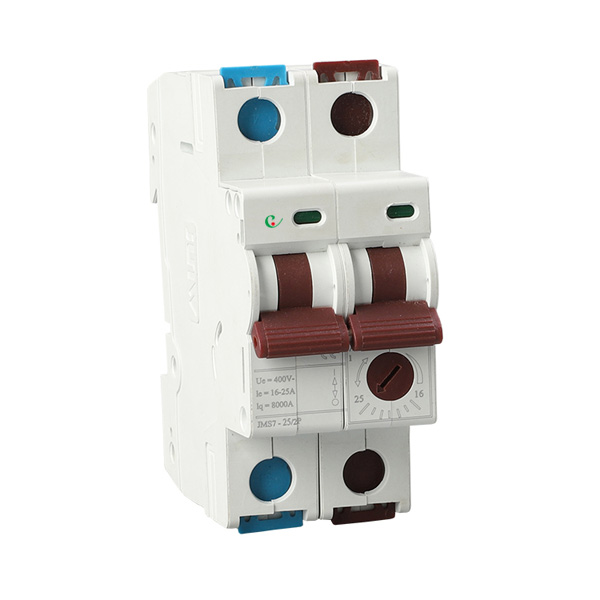

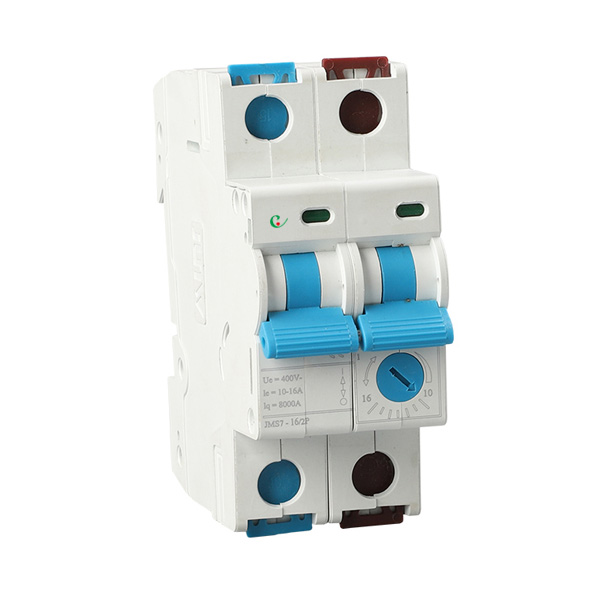

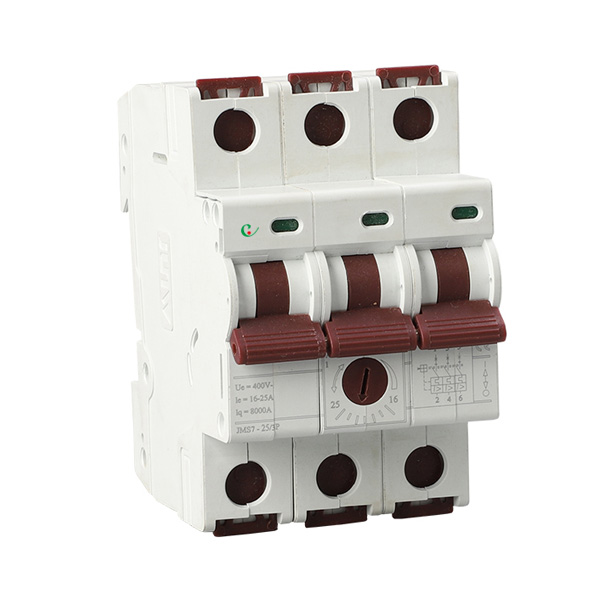

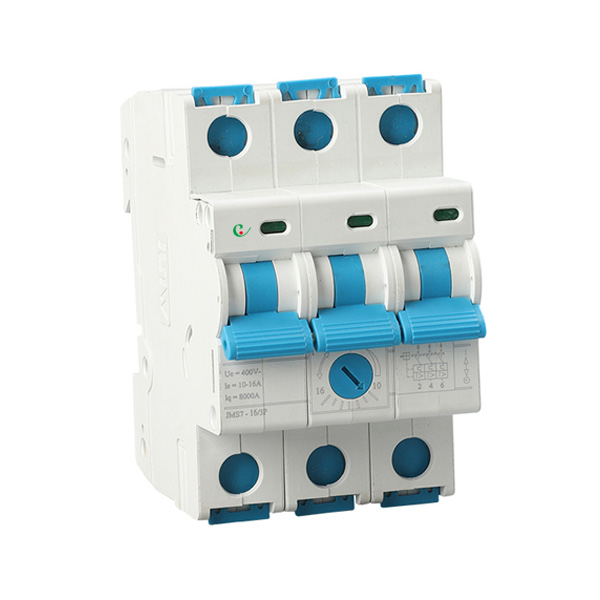

CYM10 Type current adjustable miniature circuit breaker

  • Place of Origin: Zhejiang, China
  • Type: Mini
  • Product name: MCB Miniature Circuit Breaker
  • Rated current: 1A ,3A,6A,10A,16A,20A,25A,32A,40A,50A,60A,63A100A
  • Product description: CYM-63 high breaking miniature circuit breaker has the features of structure advanced, performance reliable, breaking capacity high, appearance elegant and its shell and parts are made of material wit
  • INQUIRY

Specifications

CYM-63 high breaking miniature circuit breaker has the features of structure advanced, performance reliable, breaking capacity high, appearance elegant and its shell and parts are made of material with impact resistance, strong flame-retardant feature.

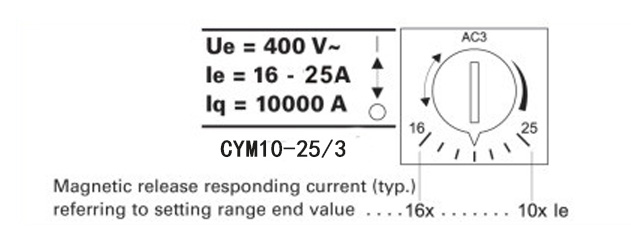

The rated current can be adjustable. More convenient !

It is suitable to power system of 50or 60 frequency ,Ue 400V and below, Ui 63A and below.

It is mainly applied at office building, residence, for lighting , power distribution and overload and short circuit protection of equipment. Normally, it also can be used as the not frequent transfer of power system. It conforms to the standards IEC60898and GB10963.1.

Type

Current adjustable rage

CYM10-0.16

0.10-0.16


CYM10-0.25

0.16-0.25


CYM10-0.40

0.25-.040


CYM10-0.63

0.40-0.63


CYM10-1.00

0.63-1.0


CYM10-1.60

1.0-1.6


CYM10-2.50

1.6-2.5


CYM10-4.00

2.5-4.0


CYM10-6.30

4.0-6.3


CYM10-10.0

6.3-10.0


CYM10-16.0

10.0-16.0


CYM10-25.0

16.0-25.0


CYM10-40.0

25.0-40.0


CYM10-50.0

37.0-50.0


CYM10-63.0

48.0-63.0
