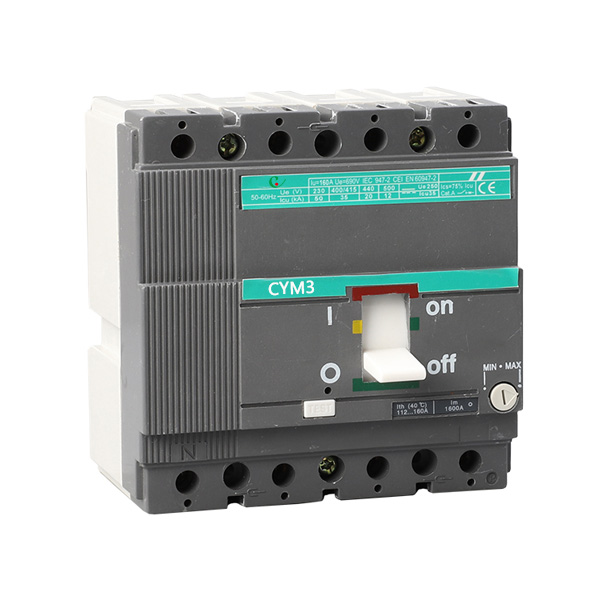

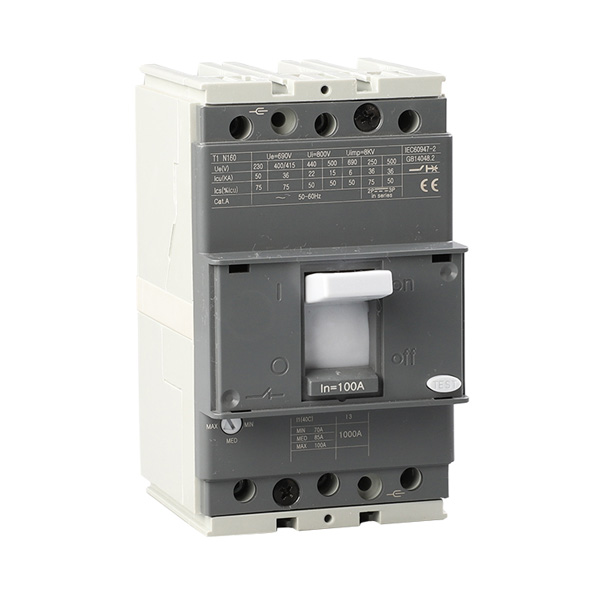

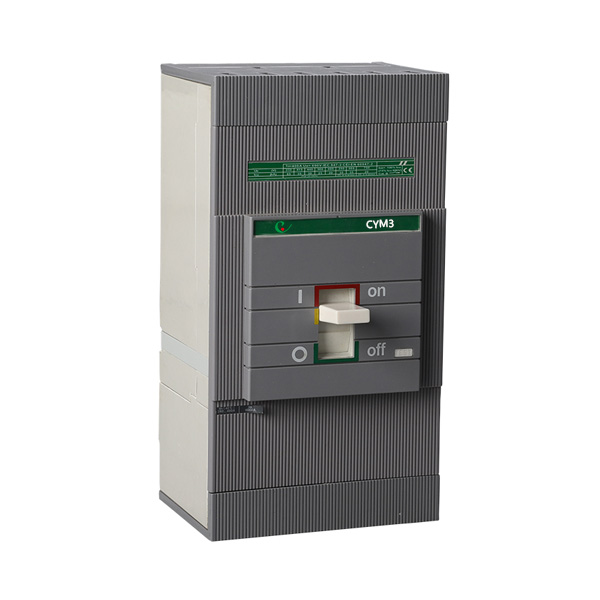

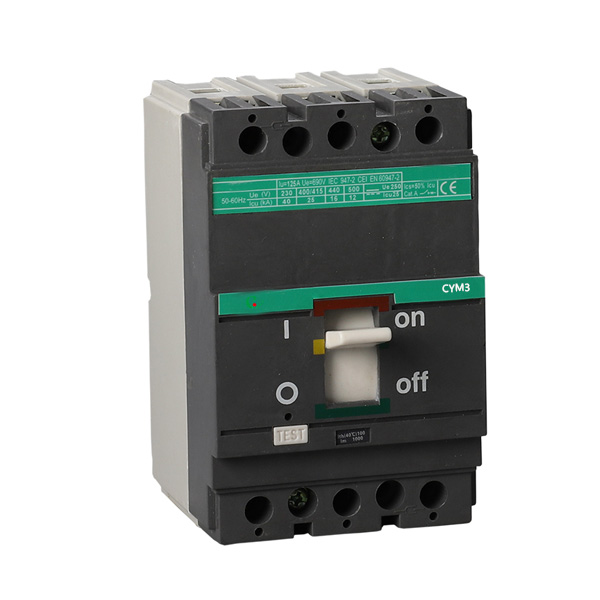

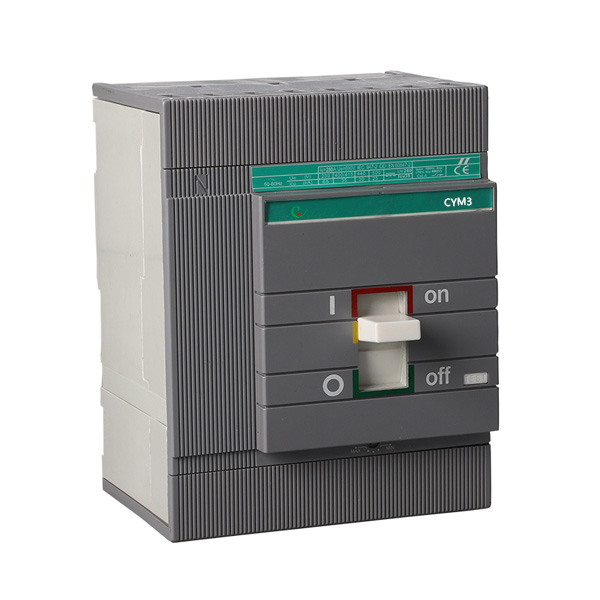

CYM3(ISOMAX) Series Moulded Case Circuit Breaker

  • Place of Origin: Zhejiang, China
  • Type: Moulded Case
  • poles: 3P/4P
  • Ue: AC690V
  • Product description: CYM3 series moulded case circuit breaker, it's applicable circuit of AC 50Hz(or 60Hz), rated insulation voltage 690V(CYM3-125 500V), rated operating voltage AC 690 or below, rated operating current 12
  • INQUIRY

CYM3 series moulded case circuit breaker, it's applicable circuit of AC 50Hz(or 60Hz), rated insulation voltage 690V(CYM3-125 500V), rated operating voltage AC 690 or below, rated operating current 12.5-800A,for distribute energy of electric and infrequent making and breaking circuitin normal condition. The circuit-breakers are provided with the function of the protection againstoverload and short circuit and under-voltage. The circuit breakers comply with standard of IEC60947-2. The circuit breakers are douple insulating(lnm=400Aor above),the control circuit of the accessories is set apart with the main circuit, and doesn't need to open the cover of the circuit bresker when install the accessories.

Products Name CYM3 Moulded case circuit breaker (MCCB)
Advantages compact, small size, high short-circuit breaking capacity,no craing-over
Suitable AC 50HZ
Rated insulation Voltage 690V
Rated working voltage 660V(690V) or below
Rated Current 20A~1600A
DC 250V or below
Standard IEC60947-2,GB-14048.2,GB-14048.4
Installation mounted verticalyy or cross-loaded
Breaking capacity rating E , S ,M , H, L
Pole No. 1P/2P/3P/4P
