  • DPN Series Miniature Circuit Breaker
  • DPN Series Miniature Circuit Breaker
DPN Series Miniature Circuit BreakerDPN Series Miniature Circuit Breaker

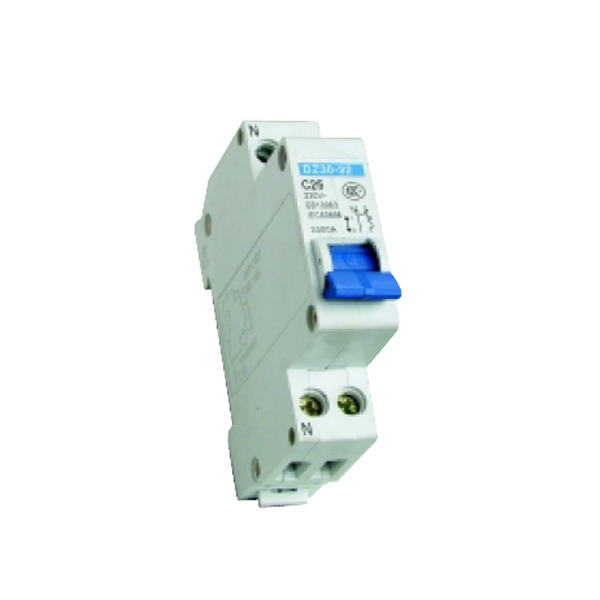

DPN Series Miniature Circuit Breaker

  • Pole:1P+N
  • Rated current ( A ):6,10,16,20,25,32
  • Rated voltage ( V ):230
  • Product description: DPN is used in the single phase circuit of AC 50HZ / 60HZ , rated voltage 230V or below for protecting circuit from overload and shortcircuit . This product has advantages of high breaking capacity ,
  • INQUIRY

Application

DPN is used in the single phase circuit of AC 50HZ / 60HZ , rated voltage 230V or below for protecting circuit from overload and shortcircuit . This product has advantages of high breaking capacity , small volume , width is only 18mm . It conforms with the standards of60898.

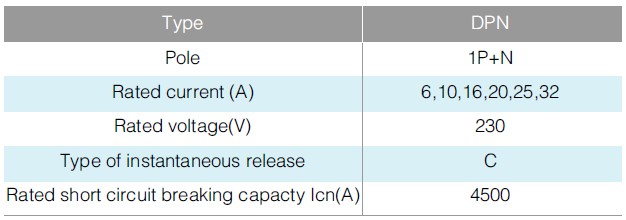

Main technical parameter

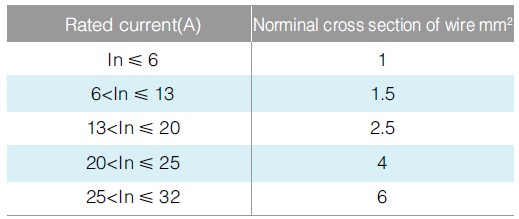

Applicable conducting wire

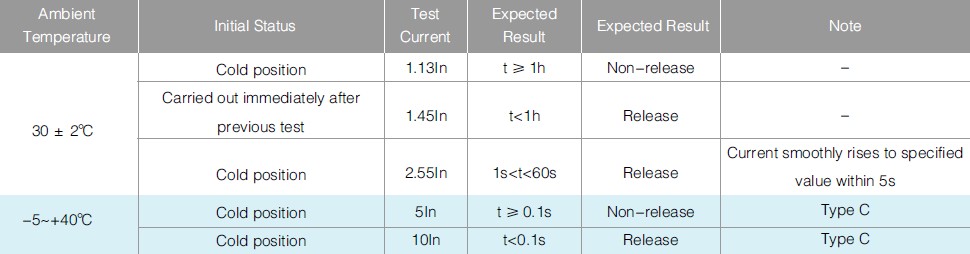

The over-current protection property
