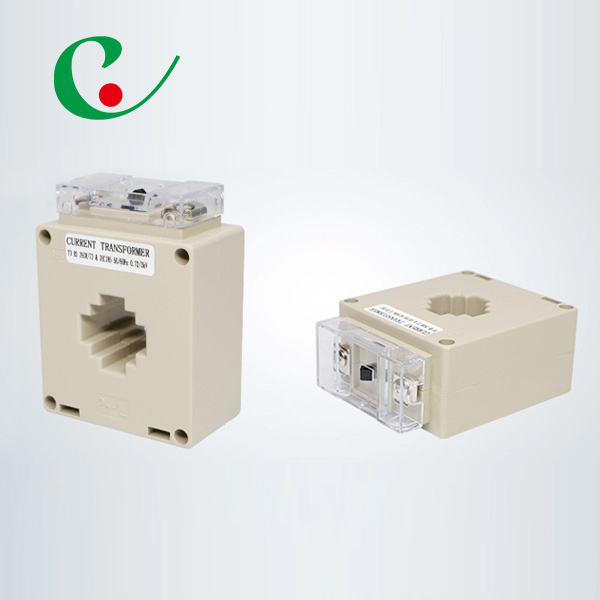

MSQ Series Low Voltage Current TransformerMSQ Series Low Voltage Current TransformerMSQ Series Low Voltage Current Transformer

MSQ Series Low Voltage Current Transformer

  • Place of Origin: Zhejiang, China
  • Model Number: MSQ Series
  • Coil Number: Autotransformer
  • Frequency: 50/60Hz

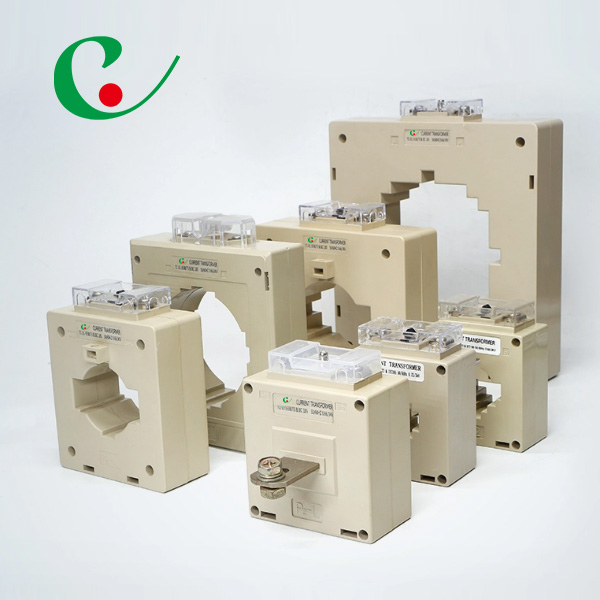

  • Product description: A range of (7 Models) classic plastic case current transformer, low cost, rich range current ratios can match most requirements internationally.
  • INQUIRY
Product Description
1.Introduction
New amc current transformer MSQ series
This series of CT can be applied to test,control.display and record the running of the electrical equipment,and to protect the equipment against the damage.
in the AC circuit with the rated voltage value below 720V and the frequency of 50-60Hz.The product can be also applied to form a complete set of mine transformer.
The products comply with IEC -185 standard.
2.Technical data
New amc current transformer MSQ series
The Current Transformers Are Made According To IEC-185 Standard.
Class Of Accuracy: 1.0 (see table)
Rated Voltage: 600V (see table)
Rated Sec. Current 5A(or 1A on request)
Security Factor: FS5
Working Temperature Range: -20 ~+45

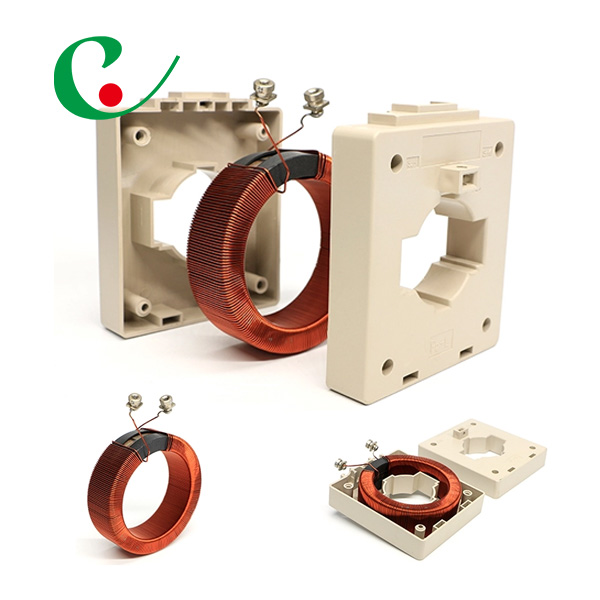

ABS plastic case, toally enclosed, built-in cover, and
several ampere outputs at secondary side iron plate for
fixing metal housing-2 pieces-1, iron bar and acrew for

fixing copper bar-3 pieces.


Specifications
Rated frequency 50/60Hz
Rated test voltage 3Kv AC (1 min)
Rated short-time thermal current (Ith) 60In
60In Rated dynamic current (Idyn) 2.5Ith
Rated voltage (Um) 0.72Kv AC
Continuous overload (Id) 1.2In
Operating temperature .-10 degree to 50 degree
Housing self-extinguishing class VO
Safety factor FS 5
Secondary current 5A/1A


Standard
IEC60044-1 GB1208-2006

Type Ratio(A) Burden(VA)
Class:0.5 Class:1.0
MSQ-30 30/5 - 1.5(2T)
MSQ-30 40/5 - 1.5(2T)
MSQ-30 50/5 - 2.5(2T)
MSQ-30 60/5 - 2.5(2T)
MSQ-30 75/5 - 1.5
MSQ-30 80/5 - 1.5
MSQ-30 100/5 - 2.5
MSQ-30 150/5 - 3.75
MSQ-30 200/5 5 5
MSQ-30 250/5 5 7.5
MSQ-30 300/5 5 10
MSQ-30B 5/5 5 7.5
MSQ-30B 10/5 5 7.5
MSQ-30B 15/5 5 7.5
MSQ-30B 20/5 5 7.5
MSQ-30B 25/5 5 7.5
MSQ-30B 30/5 5 7.5
MSQ-30B 50/5 5 7.5
MSQ-30B 60/5 5 7.5
MSQ-30B 100/5 5 7.5
MSQ-30B 150/5 5 7.5
MSQ-30B 200/5 5 7.5
MSQ-30B 250/5 5 7.5
MSQ-30B 300/5 5 7.5
MSQ-40 100/5 1.5 1.5
MSQ-40 150/5 1.5 2.5
MSQ-40 200/5 2.5 5
MSQ-40 250/5 5 5
MSQ-40 300/5 5 5
MSQ-40 400/5 5 7.5
MSQ-40 500/5 5 7.5
MSQ-60 250/5 1.5 2.5
MSQ-60 300/5 2.5 5
MSQ-60 400/5 5 10
MSQ-60 500/5 5 10
MSQ-60 600/5 5 10
MSQ-60 750/5 5 10
MSQ-60 800/5 7.5 10
MSQ-60 1000/5 10 15
MSQ-60 1200/5 10 15
MSQ-60 1500/5 15 15
MSQ-60 1600/5 15 15
MSQ-85 750/5 5 10
MSQ-85 800/5 7.5 10
MSQ-85 1000/5 10 10
MSQ-85 1200/5 10 15
MSQ-85 1500/5 15 15
MSQ-85 1600/5 15 15
MSQ-85 2000/5 15 15
MSQ-100 800/5 7.5 10
MSQ-100 1000/5 10 10
MSQ-100 1200/5 10 15
MSQ-100 1250/5 10 15
MSQ-100 1500/5 15 15
MSQ-100 1600/5 15 15
MSQ-100 2000/5 15 15
MSQ-100 2500/5 15 15
MSQ-100 3000/5 15 15
MSQ-125 1000/5 5 10
MSQ-125 1200/5 7.5 10
MSQ-125 1500/5 10 15
MSQ-125 1600/5 10 15
MSQ-125 2000/5 15 20
MSQ-125 2500/5 15 20
MSQ-125 3000/5 15 20
MSQ-125 4000/5 15 20
MSQ-125 5000/5 20 20
MSQ-125 6000/5 20 20
Dimensions
