  • HR6 Fuse switch disconnector
  • HR6 Fuse switch disconnector
HR6 Fuse switch disconnectorHR6 Fuse switch disconnector

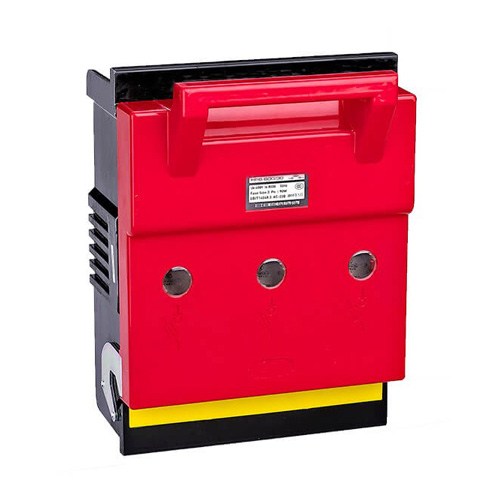

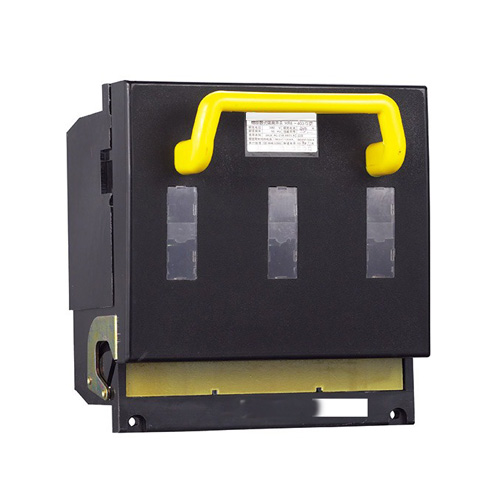

HR6 Fuse switch disconnector

  • Place of Origin: Zhejiang, China
  • Usage:Low Voltage
  • fuse disconnector switch:NH fuse matched
  • Inner contact:Copper silver plated
  • Product description: HR6 series fuse isolator switch (chere inafter refered to switch) is designed for the distribution circuit and electromot of circuit with high short circuit current, with rated AC voltage 380V and 660
  • INQUIRY

HR6 series fuse isolator switch (chere inafter refered to switch) is designed for the distribution circuit and electromot of circuit with high short circuit current, with rated AC voltage 380V and 660V ( 45-62Hz ) , conventional thermal current up t0 630A.It is used as power switch, switch disconnector and emergent switch, and with the function of circuit protection, but not used as a direct open or close single electromotor popularly.

This product is in conformity with standard GB14048.3(idtIEC60947-3).

Model HR6-160A HR6-250A HR6-400A HR6-630A
Fuse NH00(NT00) NH1(NT1) NH2(NT2) NH3(NT3)
Rated Insulation voltage  Ue V 660 660 660 660
Thermal current w/fuse link  Ith A 160 250 400 630
Rated fuse short-circuit current(kA)  50
Max.expected peak current (kA) 100
