GTL Series Copper Aluminum Tube Oil Sealed Connecting Tube GTL Series Copper Aluminum Tube Oil Sealed Connecting Tube GTL Series Copper Aluminum Tube Oil Sealed Connecting Tube

GTL Series Copper Aluminum Tube Oil Sealed Connecting Tube

  • Place of Origin: Zhejiang, China
  • Type: Lug
  • Material: Copper-Aluminum
  • Product name: GTL Connecting Tube
  • Product description: GTL Series Copper Aluminum Tube Oil Sealed Connecting Tube
  • INQUIRY

GTL Connecting Tubes are applicable to connect the circular wire and hemicycle-sertor wire in distribution equipment or power supply cables. GT serries connection tube is made of copper tube. GTL series hole-passing connecting tube is made of frition-welding craft, both top quality.

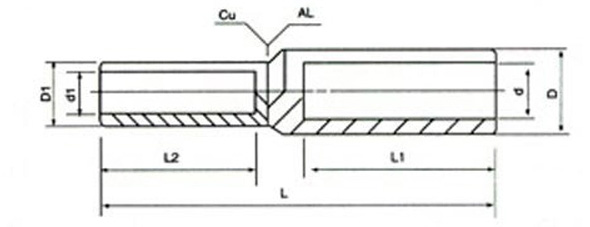

Model NO. Dimenssion(mm)
D d D1 L1 L2 L d1
GTL-16 10 6 9 30 30 70 5.5
GTL-25 12 7 10 33 30 75 5.8
GTL-35 14 8.5 11 40 30 85 7.1
GTL-50 16 9.8 13 42 32 95 8.3
GTL-70 18 11.5 15 50 38 105 10
GTL-95 21 13.5 17 50 40 110 11.6
GTL-120 23 15 19 55 42 112 13.5
GTL-150 25 17 21 55 44 118 15.6
GTL-185 27 18.5 23 60 46 125 16.5
GTL-240 30 21 26 60 54 130 18.6
GTL-300 34 23 28 65 56 145 21.1
GTL-400 38 27 30 70 60 155
GTL-500 43 29 34 75 65 160
