  • Insulated Spade Terminals
  • Insulated Spade Terminals
  • Insulated Spade Terminals
Insulated Spade TerminalsInsulated Spade TerminalsInsulated Spade Terminals

Insulated Spade Terminals

  • Product description: most reliable manufacturers for Terminals, Connectors and Wiring。
  • INQUIRY


Cable Size:0.5-1.5mm2 (A.W.G 22-16)      Max Current:1max=19A

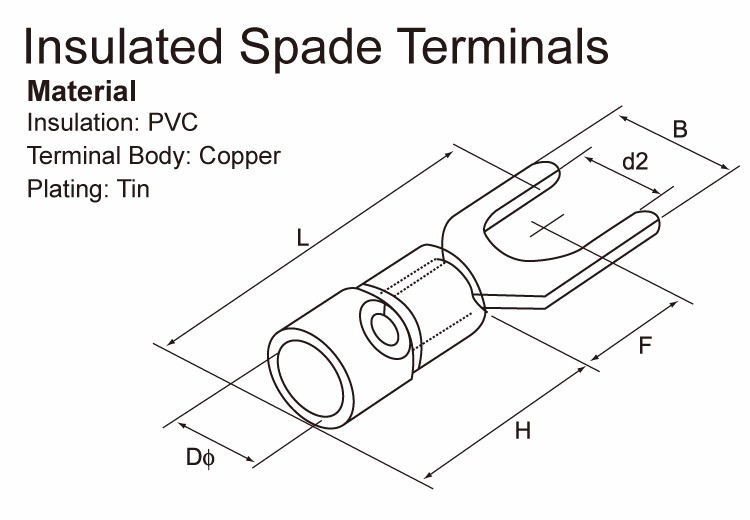

ITEM NO. USA d2Φ(mm) Dimension(mm) Color
Screw B L F H
SV1.25-3.2 #4 3.2 5.7 21.2 6.5 10 4.3 Red
SVS1.25-3.5 #6 3.7 5.7 21.2 6.5
SVL1.25-3.5 #6 3.7 6.4 21.2 6.5
SVS1.25-4 #8 4.3 6.4 21.2 6.5
SVM1.25-4 #8 4.3 7.2 21.2 6.5
SVL1.24-4 #8 4.3 8.1 21.2 6.5
SVS1.25-5 #10 5.3 8.1 21.2 6.5
SVL1.25-5 #10 5.3 9.5 21.2 6.5
SVS1.25-6 1/4 6.4 9.5 21.2 6.5
SVL1.25-6 1/4 6.4 12 27.2 11
SV1.25-8 1/4 8.5 14.5 30.5 12.55
