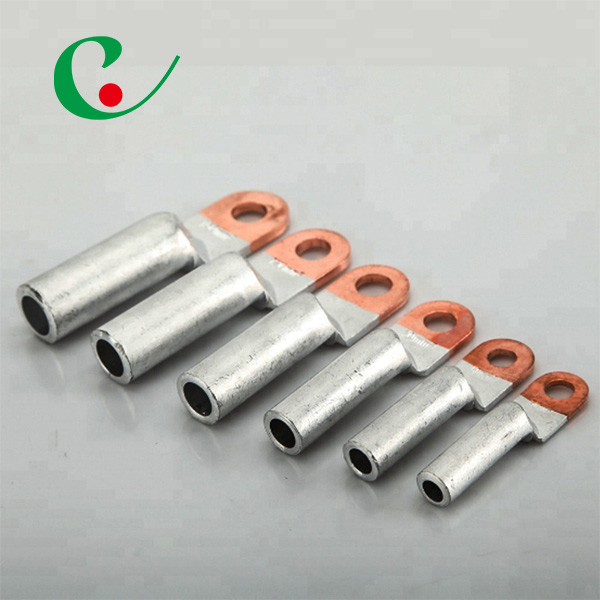

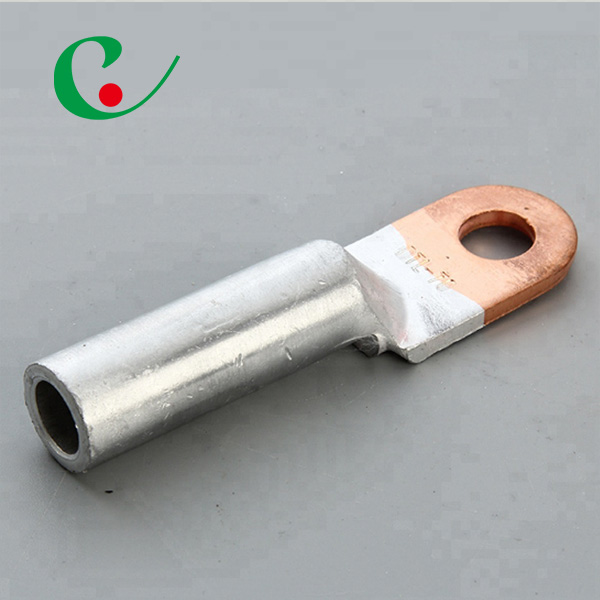

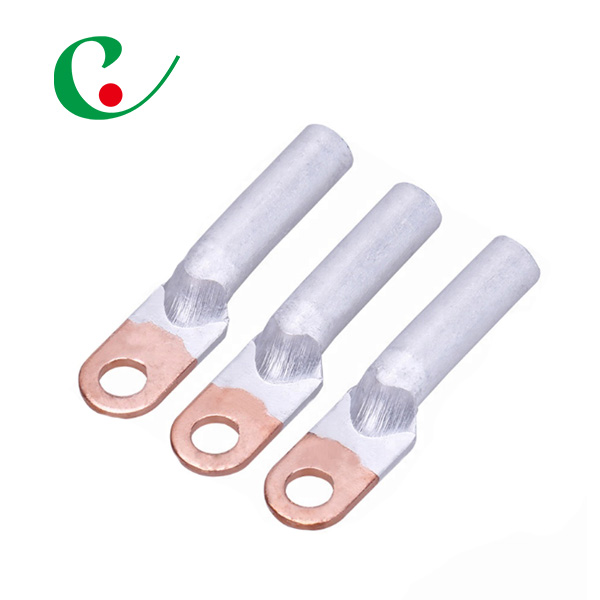

DTL Copper Aluminium Terminal

  • Place of Origin: Zhejiang, China
  • Model Number: DTL1

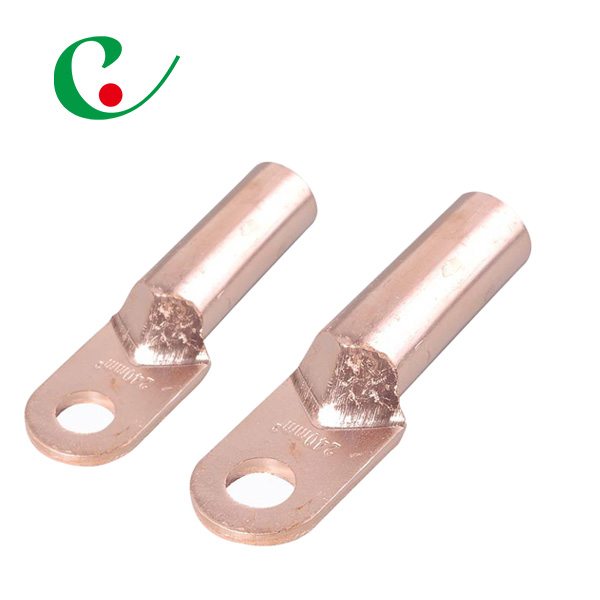

  • Name: Copper Cable Lug
  • Application: Connect the copper conductor end
  • Product description: DTL Copper Aluminium Terminal Bimetal Crimp cable end Terminal Electric Power Connector Terminal
  • INQUIRY

Due to the coupling effect when Aluminium comes in contact with Copper, corrosion will happen in a short time. Currently the best solution is to use Aluminium-Copper bimetal connectors. A bimetal lug should be used for termination. The friction welding is well done. And its barrel capped is filled with joint compound to avoid oxidization

DTL-1 Bimetallic Lug

Item No.

Cable spec(mm2)

Dimensions(mm)

Note

φ

D

d

L

L1

W

DTL-1

16

8.5

11

6.4

70

32

16

(1) Can be produced according to

customer's drawings.

DTL-1

25

8.5

12

7.4

75

34

18

DTL-1

35

10.5

14

8.7

85

40

20.5

DTL-1

50

10.5

16

9.7

90

42

23

DTL-1

70

12.5

18

11.7

100

47

26

DTL-1

95

12.5

21

13.7

110

50

28

DTL-1

120

14.5

23

15.2

120

53

30

DTL-1

150

14.5

25

16.7

125

55

34

DTL-1

185

17

28

18.7

136

58

37

DTL-1

240

17

30

21

148

60

40

DTL-1

300

21

35

23.5

165

65

50

DTL-1

400

21

38

26

170

70

50

DTL-1

500

21

40

28.5

225

75

60

DTL-1

630

45

34

245

80

80

DTL-1

800

270

90

100
