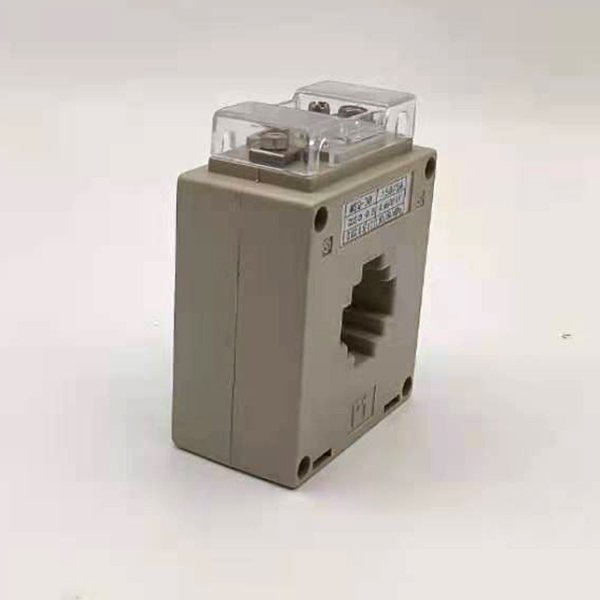

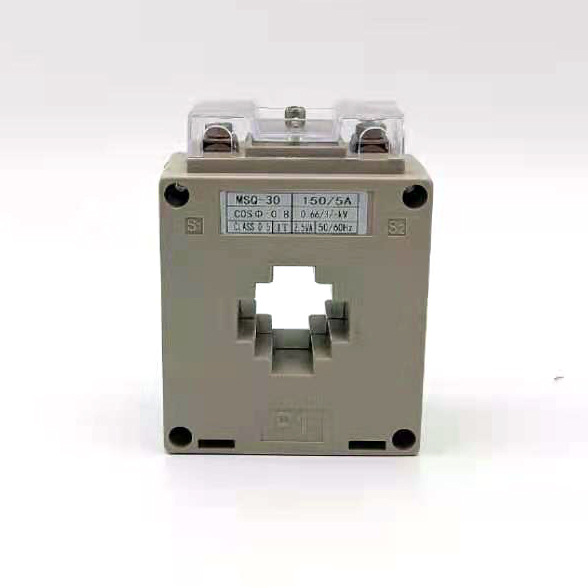

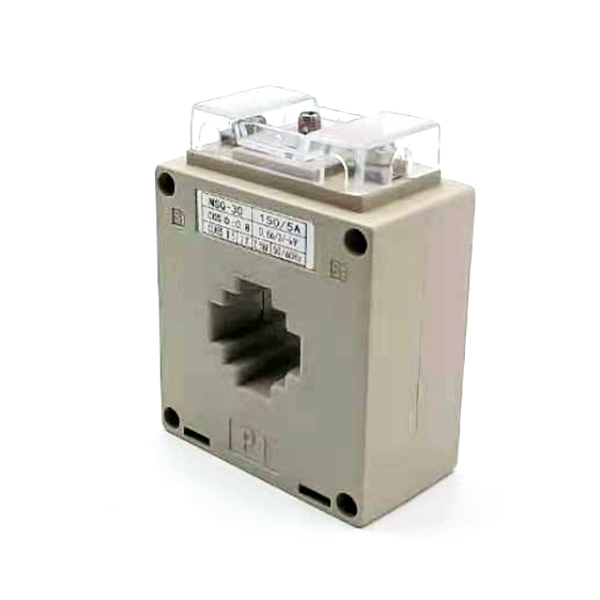

MSQ-30 Low Voltage Current Transformer

Place of Origin: Zhejiang, China
Model Number: MSQ-30
Coil Number: Autotransformer
Frequency: 50/60Hz
Product description: MSQ-30 classic plastic case current transformer, low cost, rich range current ratios can match most requirements internationally.
INQUIRY

Product Description
1.Introduction
New amc current transformer MSQ series
This series of CT can be applied to test,control.display and record the running of the electrical equipment,and to protect the equipment against the damage.
in the AC circuit with the rated voltage value below 720V and the frequency of 50-60Hz.The product can be also applied to form a complete set of mine transformer.
The products comply with IEC -185 standard.
2.Technical data
New amc current transformer MSQ series
The Current Transformers Are Made According To IEC-185 Standard.
Class Of Accuracy: 1.0 (see table)
Rated Voltage: 600V (see table)
Rated Sec. Current 5A(or 1A on request)
Security Factor: FS5
Working Temperature Range: -20 ~+45
ABS plastic case, toally enclosed, built-in cover, and
several ampere outputs at secondary side iron plate for
fixing metal housing-2 pieces-1, iron bar and acrew for

fixing copper bar-3 pieces.

Specifications

Rated frequency	50/60Hz
Rated test voltage	3Kv AC (1 min)
Rated short-time thermal current (Ith)	60In
60In Rated dynamic current (Idyn)	2.5Ith
Rated voltage (Um)	0.72Kv AC
Continuous overload (Id)	1.2In
Operating temperature	.-10 degree to 50 degree
Housing self-extinguishing class	VO
Safety factor	FS 5
Secondary current	5A/1A

Standard
IEC60044-1 GB1208-2006

Type	Ratio(A)	Burden(VA)
Type	Ratio(A)	Class:0.5	Class:1.0
MSQ-30	30/5	-	1.5(2T)
MSQ-30	40/5	-	1.5(2T)
MSQ-30	50/5	-	2.5(2T)
MSQ-30	60/5	-	2.5(2T)
MSQ-30	75/5	-	1.5
MSQ-30	80/5	-	1.5
MSQ-30	100/5	-	2.5
MSQ-30	150/5	-	3.75
MSQ-30	200/5	5	5
MSQ-30	250/5	5	7.5
MSQ-30	300/5	5	10
MSQ-30B	5/5	5	7.5
MSQ-30B	10/5	5	7.5
MSQ-30B	15/5	5	7.5
MSQ-30B	20/5	5	7.5
MSQ-30B	25/5	5	7.5
MSQ-30B	30/5	5	7.5
MSQ-30B	50/5	5	7.5
MSQ-30B	60/5	5	7.5
MSQ-30B	100/5	5	7.5
MSQ-30B	150/5	5	7.5
MSQ-30B	200/5	5	7.5
MSQ-30B	250/5	5	7.5
MSQ-30B	300/5	5	7.5
MSQ-40	100/5	1.5	1.5
MSQ-40	150/5	1.5	2.5
MSQ-40	200/5	2.5	5
MSQ-40	250/5	5	5
MSQ-40	300/5	5	5
MSQ-40	400/5	5	7.5
MSQ-40	500/5	5	7.5
MSQ-60	250/5	1.5	2.5
MSQ-60	300/5	2.5	5
MSQ-60	400/5	5	10
MSQ-60	500/5	5	10
MSQ-60	600/5	5	10
MSQ-60	750/5	5	10
MSQ-60	800/5	7.5	10
MSQ-60	1000/5	10	15
MSQ-60	1200/5	10	15
MSQ-60	1500/5	15	15
MSQ-60	1600/5	15	15
MSQ-85	750/5	5	10
MSQ-85	800/5	7.5	10
MSQ-85	1000/5	10	10
MSQ-85	1200/5	10	15
MSQ-85	1500/5	15	15
MSQ-85	1600/5	15	15
MSQ-85	2000/5	15	15
MSQ-100	800/5	7.5	10
MSQ-100	1000/5	10	10
MSQ-100	1200/5	10	15
MSQ-100	1250/5	10	15
MSQ-100	1500/5	15	15
MSQ-100	1600/5	15	15
MSQ-100	2000/5	15	15
MSQ-100	2500/5	15	15
MSQ-100	3000/5	15	15
MSQ-125	1000/5	5	10
MSQ-125	1200/5	7.5	10
MSQ-125	1500/5	10	15
MSQ-125	1600/5	10	15
MSQ-125	2000/5	15	20
MSQ-125	2500/5	15	20
MSQ-125	3000/5	15	20
MSQ-125	4000/5	15	20
MSQ-125	5000/5	20	20
MSQ-125	6000/5	20	20
