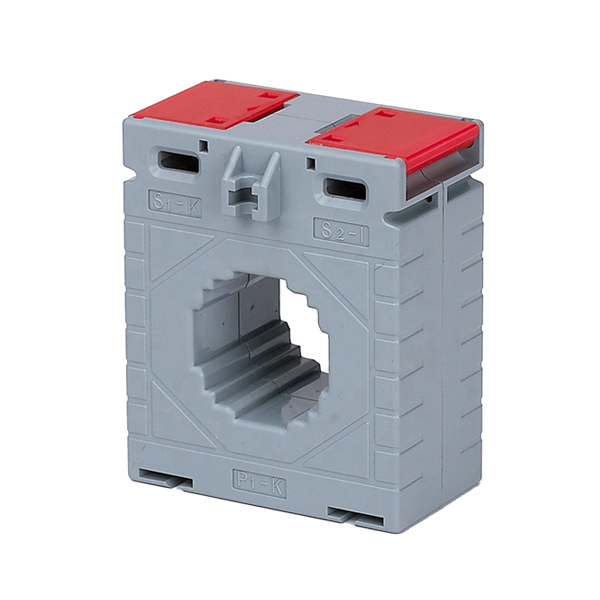

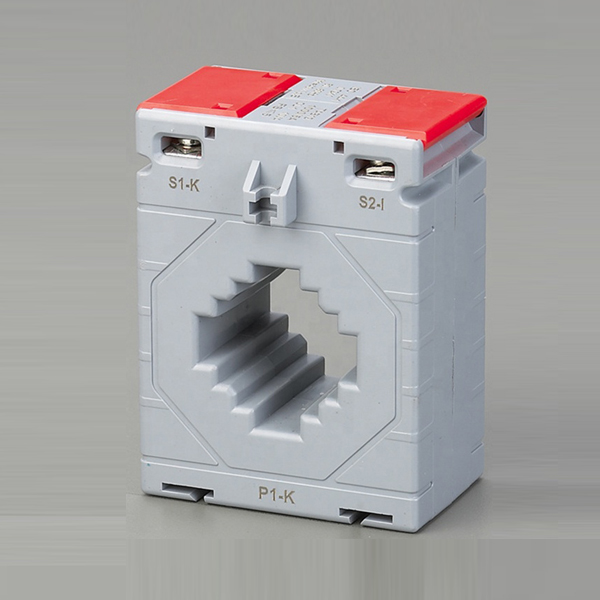

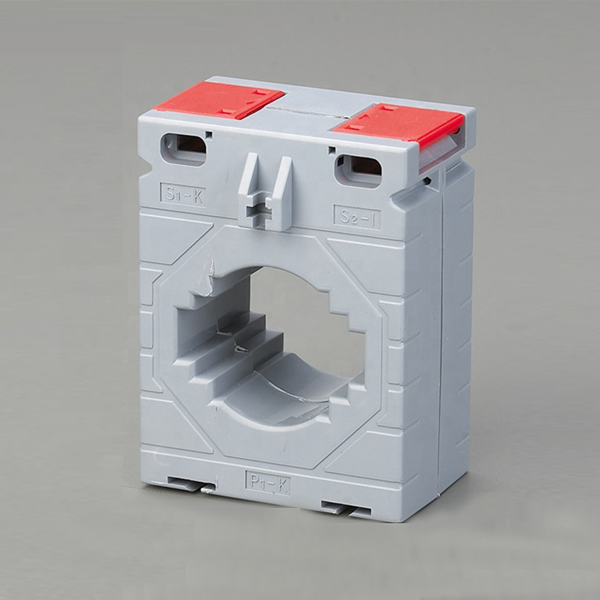

CA-CURRENT TRANSFORMERS

  • Product description: These Current Transformer are used for measuring current from 5A to 4000A,second current 5A/1A, cl.1-cl.0.2s.
  • INQUIRY

Fixing system: Busbar support mounting, metallic bracket panel mounting, by an accessory;

  directly to cable by screws(the accessory and the screws are supplied together with the C.T.



MEASURING TRANSFORMERS

-A range of (12 frames) compact design plastic case current transformer.

It's volume is much smaller than general model, integral hinged plate terminal cover,

DIN rail mounting all makes this series CT match the requirements in space limited panels.



TRANSFORMERS ELECTROINC USE

-These transformers are used for measuring current from 5A to 4000A,second current 5A/1A, cl.1-cl.0.2s.

Busbar dimensions from 0mm  to 30X100mm.



·FEATURE
Three built in fixing methods:Side base; DIN Rail;  Busbar mounting ,Built in hinged terminal cover
Compact design
Primary current from 5A to 4000A.

·SPECIFICAIONS
Rated Frequency                                       50/60Hz
Rated test voltage                                  3kV AC. (1 min)
Rated short-time thermal current(Ith)          60In
Rated dynamic current, (Idyn)                     2.5Ith
Rated voltage,(Um)                                   0.72Kv AC.
Continuous overload,(Id)                             1.2In
Operating temperature                              -10℃~50℃
Housing self-extinguishing class                     VO
Safety factor                                                 FS 5

Secondary current                                        5A/1A
